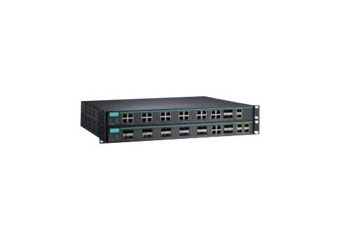

Moxa ICS-G7828A-4GTXSFP-4XG-HV-HV - switch - 24 porte - Administreret - monterbar på stativ
| Produktbeskrivelse | Moxa ICS-G7828A-4GTXSFP-4XG-HV-HV - switch - 24 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 24 porte - L3 - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 12 x 10/100/1000 + 8 x Gigabit SFP + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+ |
| Præstation | Omkoblingskapacitet: 128 Gbps ¦ Fremsendelsespræstation: 95.2 Mpps |
| Kapacitet | Aktive VLANer: 256 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 4096 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9.6KB |
| Routingprotokol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, statisk IP routing, PIM-DM, IGMPv3, PIM-SSM |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Egenskaber | Datatransport, DHCP-understøttelse, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, DiffServ understøttet, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, blæserløs, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, DHCP klient, e-mail meddelelse, Management Information Base (MIB), Dynamic VLAN Support (GVRP), NTP tidssynkronisering, 12 Mbit pakkebuffer |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 1588v2 |
| Effekt | AC 85 - 264 V |
| Dimensioner (B x D x H) | 44 cm x 38.69 cm x 4.4 cm |
| Vægt | 5.3 kg |
| Producentgaranti | 5 års garanti |
Produktdatablad |
|
| Enhedstype | Switch - 24 porte - L3 - Administreret |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 12 x 10/100/1000 + 8 x Gigabit SFP + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+ |
| Præstation | Omkoblingskapacitet: 128 Gbps ¦ Fremsendelsespræstation: 95.2 Mpps |
| Kapacitet | Aktive VLANer: 256 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 4096 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9.6KB |
| Routingprotokol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, statisk IP routing, PIM-DM, IGMPv3, PIM-SSM |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Krypterings algoritme | MODBUS |
| Autentificeringsmetode | Secure Shell (SSH), TACACS+ |
| Egenskaber | Datatransport, DHCP-understøttelse, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, DiffServ understøttet, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, blæserløs, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, DHCP klient, e-mail meddelelse, Management Information Base (MIB), Dynamic VLAN Support (GVRP), NTP tidssynkronisering, 12 Mbit pakkebuffer |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 1588v2 |
| RAM | 128 MB |
| Flashhukommelse | 16 MB |
| Statusindikatorer | Strøm, mislykket, status |
| Interface | 16 x 1000Base-T RJ-45 ¦ 12 x 1000Base-X SFP ¦ 4 x 10GBase-X SFP+ ¦ 1 x konsol (mini-USB) Type B administration ¦ 1 x USB Type A |
| Strømenhed | Intern strømforsyning |
| Antal installeret | 2 (installeret) / 2 (maks.) |
| Nødvendig spænding | AC 85 - 264 V |
| Egenskaber | Power Polarity Reverse Protect, Overload Current Resetable Fuse |
| MTBF (forventet tid mellem fejl) | 233,244 timer |
| Overensstemmelsesstandarder | EN55022 Klasse A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 B Class A, EN 50121-4, IP30 |
| Bredde | 44 cm |
| Dybde | 38.69 cm |
| Højde | 4.4 cm |
| Vægt | 5.3 kg |
| Service & Support | Begrænset garanti - 5 år |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 60 °C |
| Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
| Min. lagertemperatur | -40 °C |
| Maks. Opbevaringstemperatur | 85 °C |
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7828A series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports, and the ICS-G7828A support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large scale industrial networks. The ICS-G7828A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
