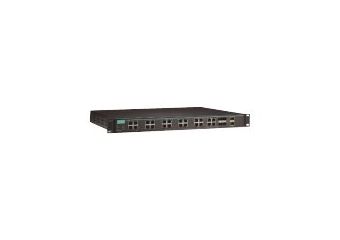

Moxa ICS-G7526A-4GTXSFP-2XG-HV-HV - switch - 26 porte - Administreret - monterbar på stativ
| Produktbeskrivelse | Moxa ICS-G7526A-4GTXSFP-2XG-HV-HV - switch - 26 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 26 porte - Administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 20 x 10/100/1000 + 4 x combo Gigabit SFP + 2 x 10 Gigabit SFP+ |
| Præstation | Omkoblingskapacitet: 88 Gbps ¦ Fremsendelsespræstation: 65.5 Mpps |
| Kapacitet | Virtuelle grænseflader (VLANs): 256 ¦ IGMP-grupper: 4096 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9.6KB |
| Routingprotokol | IGMPv2, IGMP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Egenskaber | Datatransport, understøttet af BOOTP, understøttet af RARP, VLAN-understøttet, Syslog understøttet, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, DHCP server, blæserløs, LACP support, LLDP support, NTP server, DHCP klient, Dynamic VLAN Support (GVRP), Class of Service (CoS), EtherNet/IP-aktiveret, Back Pressure Support, 12 Mbit pakkebuffer, GARP Multicast Registration Protocol (GMRP) |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 1588v2 |
| Effekt | AC 120/230 V |
| Dimensioner (B x D x H) | 44 cm x 38.69 cm x 4.4 cm |
| Vægt | 5.3 kg |
| Producentgaranti | 5 års garanti |
Produktdatablad |
|
| Enhedstype | Switch - 26 porte - Administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 20 x 10/100/1000 + 4 x combo Gigabit SFP + 2 x 10 Gigabit SFP+ |
| Præstation | Omkoblingskapacitet: 88 Gbps ¦ Fremsendelsespræstation: 65.5 Mpps |
| Kapacitet | Virtuelle grænseflader (VLANs): 256 ¦ IGMP-grupper: 4096 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9.6KB |
| Routingprotokol | IGMPv2, IGMP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Krypterings algoritme | MODBUS |
| Egenskaber | Datatransport, understøttet af BOOTP, understøttet af RARP, VLAN-understøttet, Syslog understøttet, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, DHCP server, blæserløs, LACP support, LLDP support, NTP server, DHCP klient, Dynamic VLAN Support (GVRP), Class of Service (CoS), EtherNet/IP-aktiveret, Back Pressure Support, 12 Mbit pakkebuffer, GARP Multicast Registration Protocol (GMRP) |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 1588v2 |
| RAM | 128 MB |
| Flashhukommelse | 16 MB |
| Statusindikatorer | Strøm, mislykket, status |
| Interface | 24 x 1000Base-T RJ-45 ¦ 2 x 10GBase-X SFP+ ¦ 4 x 1000Base-X SFP |
| Strømenhed | Intern strømforsyning |
| Antal installeret | 2 (installeret) / 2 (maks.) |
| Nødvendig spænding | AC 120/230 V |
| Egenskaber | Power Polarity Reverse Protect, Overload Current Resetable Fuse |
| MTBF (forventet tid mellem fejl) | 216,552 timer |
| Overensstemmelsesstandarder | EN55022 Klasse A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 B Class A, EN 50121-4, IP30 |
| Bredde | 44 cm |
| Dybde | 38.69 cm |
| Højde | 4.4 cm |
| Vægt | 5.3 kg |
| Service & Support | Begrænset garanti - 5 år |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 60 °C |
| Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
| Min. lagertemperatur | -40 °C |
| Maks. Opbevaringstemperatur | 85 °C |
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7526A series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports, making them ideal for large scale industrial networks. The ICS-G7526A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
