| Produktbeskrivelse
|

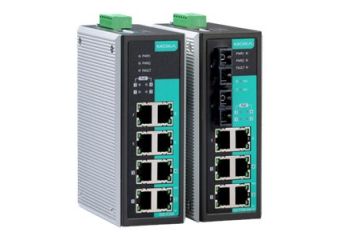

Moxa EtherDevice Switch EDS-P308-T - switch - 8 porte
|
| Enhedstype
|
Switch - 8 porte
|
| Undertype
|
Fast Ethernet
|
| Porte
|
4 x 10/100 (PoE) + 4 x 10/100
|
| MAC adresse table størrelse
|
1 K indtastningshukommelse
|
| Egenskaber
|
Datatransport, komplet duplex ydeevne, power over Ethernet (PoE), auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, Broadcast Storm Control, til vægmontering
|
| Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x
|
| Effekt
|
DC 48 V
|
| Dimensioner (B x D x H)
|
5.36 cm x 10.5 cm x 13.5 cm
|
| Vægt
|
840 g
|
| Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
| Enhedstype |
Switch - 8 porte |
| Pakningstype |
DIN monterbar på skinne |
| Undertype |
Fast Ethernet |
| Porte |
4 x 10/100 (PoE) + 4 x 10/100 |
| MAC adresse table størrelse |
1 K indtastningshukommelse |
| Egenskaber |
Datatransport, komplet duplex ydeevne, power over Ethernet (PoE), auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, Broadcast Storm Control, til vægmontering |
| Overensstemmelsesstandarder |
IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x |
| Indbygget udstyr |
LED-panel |
| Statusindikatorer |
Ports transmissionshastighed, strøm, PoE |
| Interface |
4 x 100Base-TX RJ-45 ¦ 4 x 100Base-TX RJ-45 PoE |
| Nødvendig spænding |
DC 48 V |
| Egenskaber |
Redundant Power System (RPS) konnektor |
| Overensstemmelsesstandarder |
EN55022 Klasse A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 B Class A, IP30 |
| Bredde |
5.36 cm |
| Dybde |
10.5 cm |
| Højde |
13.5 cm |
| Vægt |
840 g |
| Service & Support |
Begrænset garanti - 5 år |
| Min. driftstemperatur |
-40 °C |
| Maks. driftstemperatur |
75 °C |
| Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
| Min. lagertemperatur |
-40 °C |
| Maks. Opbevaringstemperatur |
85 °C |
The EDS-P308 switches are smart, 8-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P308 switches enable centralization of the power supply and provide up to 15.4-watt of power per port. The switches can be used to power IEEE 802.3af compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network. In addition, the built-in relay warning function alerts network engineers when power failures or port breaks occur.
