Produktbeskrivelse
|

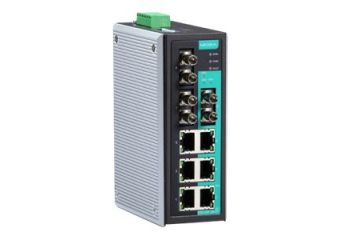

Moxa EtherDevice Switch EDS-309-3M-ST-T - switch - 9 porte - ikke administreret
|
Enhedstype
|
Switch - 9 porte - ikke administreret
|
Undertype
|
Fast Ethernet
|
Porte
|
6 x 10/100 + 3 x 100Base-FX
|
MAC adresse table størrelse
|
1 K indtastningshukommelse
|
Egenskaber
|
Datatransport, komplet duplex ydeevne, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, Broadcast Storm Control, til vægmontering, 64 KB pakkebuffer
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
|
Effekt
|
DC 12 - 45 V
|
Dimensioner (B x D x H)
|
5.36 cm x 10.5 cm x 13.5 cm
|
Vægt
|
790 g
|
Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
Enhedstype |
Switch - 9 porte - ikke administreret |
Pakningstype |
DIN monterbar på skinne |
Undertype |
Fast Ethernet |
Porte |
6 x 10/100 + 3 x 100Base-FX |
MAC adresse table størrelse |
1 K indtastningshukommelse |
Egenskaber |
Datatransport, komplet duplex ydeevne, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, Broadcast Storm Control, til vægmontering, 64 KB pakkebuffer |
Overensstemmelsesstandarder |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Statusindikatorer |
Ports transmissionshastighed, strøm |
Interface |
6 x 100Base-TX RJ-45 ¦ 3 x 100Base-FX ST multi-mode x 2 |
Nødvendig spænding |
DC 12 - 45 V |
MTBF (forventet tid mellem fejl) |
396,000 timer |
Overensstemmelsesstandarder |
CISPR 22 Klasse A, EN55022 Klasse A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508 |
Bredde |
5.36 cm |
Dybde |
10.5 cm |
Højde |
13.5 cm |
Vægt |
790 g |
Service & Support |
Begrænset garanti - 5 år |
Min. driftstemperatur |
-40 °C |
Maks. driftstemperatur |
75 °C |
Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
Min. lagertemperatur |
-40 °C |
Maks. Opbevaringstemperatur |
85 °C |
The EDS-309 series of 9-port Ethernet switches provide an economical solution for your industrial Ethernet connections. The built-in relay warning function alerts network engineers when power failures or port breaks occur, and the switches are designed for harsh industrial environments, such as in hazardous locations. The switches comply with FCC, TÜV, UL, and CE standards. The EDS-309 series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control. The EDS-309 series switches can be installed easily on a DIN-Rail or in a distribution box.
