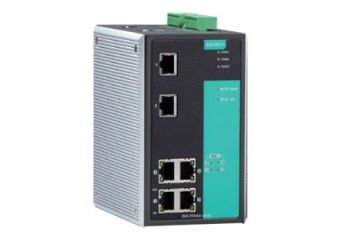

Moxa EDS-P506A-4POE - switch - 6 porte - Administreret
| Produktbeskrivelse | Moxa EDS-P506A-4POE - switch - 6 porte - Administreret |
| Enhedstype | Switch - 6 porte - Administreret |
| Undertype | Fast Ethernet |
| Porte | 4 x 10/100 (PoE+) + 2 x 10/100 |
| Power Over Ethernet (PoE) | PoE+ |
| Kapacitet | IGMP-grupper: 256 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ Aktive VLANer: 64 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Routingprotokol | IGMPv2, IGMP |
| Protokol til fjernadministration | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Egenskaber | Datatransport, komplet duplex ydeevne, auto-negotiation, understøttet af BOOTP, understøttet af RARP, auto-uplink (auto MDI/MDI-X), Syslog understøttet, DiffServ understøttet, gem og send, IPv6 understøttet, SNTP-understøttet, til vægmontering, Quality of Service (QoS), DHCP server, LLDP support, NTP server, DHCP klient, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), EtherNet/IP-aktiveret, 1 Mbit pakkebuffer, GARP Multicast Registration Protocol (GMRP) |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 1588v2 |
| Effekt | DC 24/48 V |
| Overskudsspænding | Ja |
| Dimensioner (B x D x H) | 8 cm x 13.15 cm x 13.5 cm |
| Vægt | 1.27 kg |
| Producentgaranti | 5 års garanti |
Produktdatablad |
|
| Enhedstype | Switch - 6 porte - Administreret |
| Pakningstype | DIN monterbar på skinne |
| Undertype | Fast Ethernet |
| Porte | 4 x 10/100 (PoE+) + 2 x 10/100 |
| Power Over Ethernet (PoE) | PoE+ |
| Kapacitet | IGMP-grupper: 256 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ Aktive VLANer: 64 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Routingprotokol | IGMPv2, IGMP |
| Protokol til fjernadministration | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Autentificeringsmetode | TACACS+ |
| Egenskaber | Datatransport, komplet duplex ydeevne, auto-negotiation, understøttet af BOOTP, understøttet af RARP, auto-uplink (auto MDI/MDI-X), Syslog understøttet, DiffServ understøttet, gem og send, IPv6 understøttet, SNTP-understøttet, til vægmontering, Quality of Service (QoS), DHCP server, LLDP support, NTP server, DHCP klient, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), EtherNet/IP-aktiveret, 1 Mbit pakkebuffer, GARP Multicast Registration Protocol (GMRP) |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 1588v2 |
| Statusindikatorer | Ports transmissionshastighed, strøm, PoE |
| Interface | 4 x 100Base-TX RJ-45 PoE+ ¦ 2 x 100Base-TX RJ-45 ¦ 1 x seriel (RS-232) RJ-45 |
| Antal installeret | 2 |
| Overskudsspænding | Ja |
| Nødvendig spænding | DC 24/48 V |
| Medfølgende ledninger | 1 x konsolkabel |
| MTBF (forventet tid mellem fejl) | 433,000 timer |
| Overensstemmelsesstandarder | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 B Class A, EN 50121-4, IP30, EN 55022 Class A |
| Bredde | 8 cm |
| Dybde | 13.15 cm |
| Højde | 13.5 cm |
| Vægt | 1.27 kg |
| Service & Support | Begrænset garanti - 5 år |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 60 °C |
| Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
| Min. lagertemperatur | -40 °C |
| Maks. Opbevaringstemperatur | 85 °C |
The EDS-P506A-4PoE series managed redundant Ethernet switches come standard with 4 10/100BaseT(X) 802.3 at (PoE+) and 802.3 af (PoE) compliant Ethernet ports and 2 10/100BaseT(X) or 2 10/100BaseFX Ethernet ports. The EDS-P506A-4PoE switches provide up to 30 watts of power per PoE port, and allow power to be supplied to connected high-power devices when AC power is not readily available or is cost prohibitive to provide locally. The EDS-P506A-4PoE series switches are highly versatile, and their fiber port can transmit data up to 80 km from the device to the control center with high EMI immunity. The Ethernet switches support advanced management and security features. The EDS-P506A-4PoE series is designed especially for security automation applications such as IP surveillance, and gate of entry systems, which can benefit from a scalable backbone construction and Power-over-Ethernet support.
