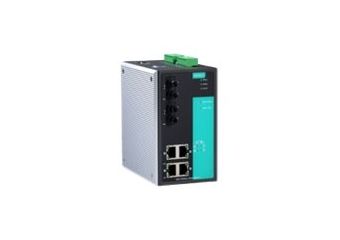

Moxa EDS-P506A-4POE-MM-ST-T - switch - 6 porte - Administreret
| Produktbeskrivelse | Moxa EDS-P506A-4POE-MM-ST-T - switch - 6 porte - Administreret |
| Enhedstype | Switch - 6 porte - Administreret |
| Undertype | Fast Ethernet |
| Porte | 4 x 10/100 (PoE+) + 2 x 100Base-FX |
| Power Over Ethernet (PoE) | PoE+ |
| Kapacitet | IGMP-grupper: 256 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ Aktive VLANer: 64 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Routingprotokol | IGMPv2, IGMP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Egenskaber | Datatransport, auto-negotiation, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DiffServ understøttet, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, DHCP klient, Management Information Base (MIB), Dynamic VLAN Support (GVRP), NTP tidssynkronisering, 1 MB pakkebuffer |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 1588v2 |
| Effekt | DC 24/48 V |
| Dimensioner (B x D x H) | 8 cm x 13.15 cm x 13.5 cm |
| Vægt | 1.27 kg |
| Producentgaranti | 5 års garanti |
Produktdatablad |
|
| Enhedstype | Switch - 6 porte - Administreret |
| Pakningstype | DIN monterbar på skinne |
| Undertype | Fast Ethernet |
| Porte | 4 x 10/100 (PoE+) + 2 x 100Base-FX |
| Power Over Ethernet (PoE) | PoE+ |
| Optisk bølgelængde | 1300 nm |
| Kapacitet | IGMP-grupper: 256 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ Aktive VLANer: 64 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Routingprotokol | IGMPv2, IGMP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Krypterings algoritme | MODBUS |
| Autentificeringsmetode | TACACS+ |
| Egenskaber | Datatransport, auto-negotiation, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DiffServ understøttet, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, DHCP klient, Management Information Base (MIB), Dynamic VLAN Support (GVRP), NTP tidssynkronisering, 1 MB pakkebuffer |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 1588v2 |
| Statusindikatorer | Ports transmissionshastighed, strøm, mislykket, RPS (Redundant Power Supply), PoE |
| Interface | 4 x 100Base-TX RJ-45 PoE+ ¦ 2 x 100Base-FX ST multi-mode x 2 ¦ 1 x seriel (RS-232) RJ-45 administration |
| Nødvendig spænding | DC 24/48 V |
| Egenskaber | Power Polarity Reverse Protect |
| Medfølgende ledninger | 1 x konsolkabel |
| MTBF (forventet tid mellem fejl) | 433,000 timer |
| Overensstemmelsesstandarder | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 B Class A, EN 50121-4, IP30, EN 55022 Class A |
| Bredde | 8 cm |
| Dybde | 13.15 cm |
| Højde | 13.5 cm |
| Vægt | 1.27 kg |
| Service & Support | Begrænset garanti - 5 år |
| Min. driftstemperatur | -40 °C |
| Maks. driftstemperatur | 75 °C |
| Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
| Min. lagertemperatur | -40 °C |
| Maks. Opbevaringstemperatur | 85 °C |
The EDS-P506A-4PoE series managed redundant Ethernet switches come standard with 4 10/100BaseT(X) 802.3at (PoE+) and 802.3af (PoE) compliant Ethernet ports and 2 10/100BaseT(X) or 2 10/100BaseFX Ethernet ports. The EDS-P506A-4PoE switches provide up to 30 watts of power per PoE port, and allow power to be supplied to connected high-power devices when AC power is not readily available or is cost-prohibitive to provide locally. The EDS-P506A-4PoE series series is designed especially for security automation applications such as IP surveillance, and gate of entry systems, which can benefit from a scalable backbone construction and Power-over-Ethernet support.
