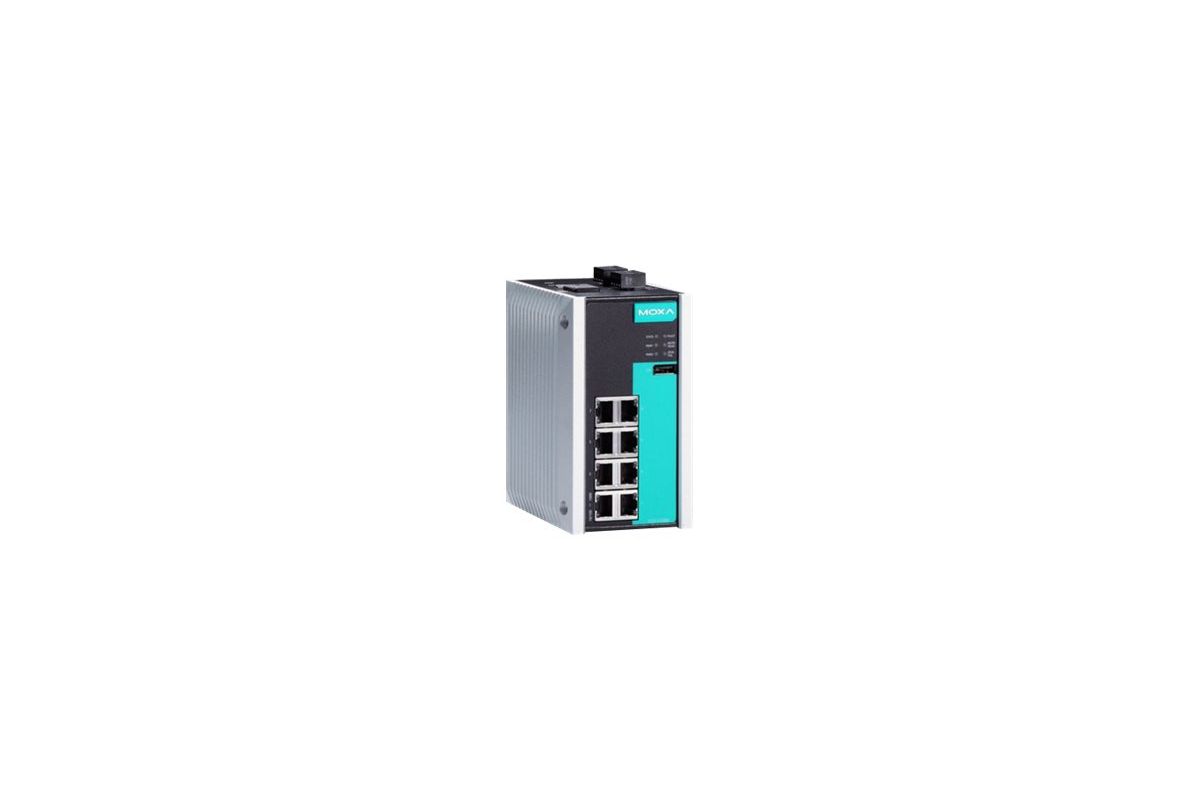

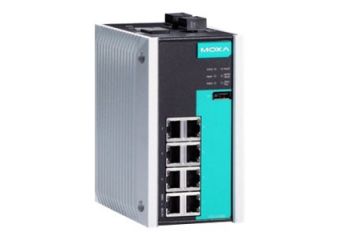

Moxa EDS-G508E - switch - 8 porte - Administreret
| Produktbeskrivelse | Moxa EDS-G508E - switch - 8 porte - Administreret |
| Enhedstype | Switch - 8 porte - Administreret |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 |
| Kapacitet | Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 2048 ¦ Aktive VLANer: 256 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 9.6KB |
| Routingprotokol | IGMPv2, IGMP, IGMPv3 |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Egenskaber | Datatransport, auto-negotiation, understøttet af BOOTP, understøttet af RARP, Syslog understøttet, portspejling, IPv6 understøttet, SNTP-understøttet, til vægmontering, Digital Diagnostics Monitoring Interface (DDMI), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, båndbreddekontrol, LLDP support, NTP server, DHCP klient, Management Information Base (MIB), GARP VLAN Registration Protocol (GVRP), metalkabinet, Type of Service (ToS), EtherNet/IP-aktiveret, PROFINET, 1 Mbit pakkebuffer, GARP Multicast Registration Protocol (GMRP) |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 801.1p, IEEE 1588v2 |
| Effekt | DC 12/24/48 V |
| Overskudsspænding | Ja |
| Dimensioner (B x D x H) | 7.92 cm x 13.7 cm x 13.5 cm |
| Vægt | 1.44 kg |
| Producentgaranti | 5 års garanti |
Produktdatablad |
|
| Enhedstype | Switch - 8 porte - Administreret |
| Pakningstype | DIN monterbar på skinne |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 |
| Kapacitet | Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 2048 ¦ Aktive VLANer: 256 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 9.6KB |
| Routingprotokol | IGMPv2, IGMP, IGMPv3 |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Autentificeringsmetode | RADIUS, TACACS+ |
| Egenskaber | Datatransport, auto-negotiation, understøttet af BOOTP, understøttet af RARP, Syslog understøttet, portspejling, IPv6 understøttet, SNTP-understøttet, til vægmontering, Digital Diagnostics Monitoring Interface (DDMI), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, båndbreddekontrol, LLDP support, NTP server, DHCP klient, Management Information Base (MIB), GARP VLAN Registration Protocol (GVRP), metalkabinet, Type of Service (ToS), EtherNet/IP-aktiveret, PROFINET, 1 Mbit pakkebuffer, GARP Multicast Registration Protocol (GMRP) |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 801.1p, IEEE 1588v2 |
| Statusindikatorer | Portstatus, strøm, mislykket |
| Interface | 8 x 1000Base-T RJ-45 ¦ 1 x USB Type B ¦ 1 x USB Type A |
| Antal installeret | 2 |
| Overskudsspænding | Ja |
| Skema til overskudsspænding | 1+1 |
| Nødvendig spænding | DC 12/24/48 V |
| Medfølgende ledninger | 1 x USB-kabel |
| MTBF (forventet tid mellem fejl) | 808,970 timer |
| Overensstemmelsesstandarder | UL, cUL, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 B Class A, EN 50121-4, IP30, NEMA TS-2, IEEE 1613, ATEX Zone 2 |
| Bredde | 7.92 cm |
| Dybde | 13.7 cm |
| Højde | 13.5 cm |
| Vægt | 1.44 kg |
| Service & Support | Begrænset garanti - 5 år |
| Min. driftstemperatur | -10 °C |
| Maks. driftstemperatur | 60 °C |
| Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
| Min. lagertemperatur | -40 °C |
| Maks. Opbevaringstemperatur | 85 °C |
The EDS-G500E series is equipped with 8 Gigabit Ethernet ports and up to 4 fiber optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly. Redundant Ethernet Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase system reliability and the availability of your network backbone. The EDS-G500E series is designed especially for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
