Produktbeskrivelse
|

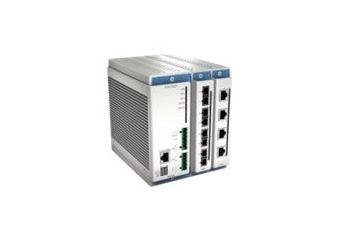

Moxa EDS-608 Series EDS-608-T - switch - Administreret
|
Enhedstype
|
Switch - Administreret
|
Undertype
|
Fast Ethernet
|
Porte
|
8 x 10/100
|
Kapacitet
|
VLANs understøttet: 64 ¦ IGMP-grupper: 256
|
Protokol til fjernadministration
|
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
|
Egenskaber
|
Datatransport, komplet duplex ydeevne, auto-negotiation, understøttet af BOOTP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), DiffServ understøttet, IPv6 understøttet, Turbo Mode, til vægmontering, Quality of Service (QoS)
|
Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
|
Effekt
|
DC 12/24/48 V
|
Dimensioner (B x D x H)
|
12.49 cm x 15.1 cm x 15.72 cm
|
Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
Enhedstype |
Switch - Administreret |
Pakningstype |
DIN monterbar på skinne |
Undertype |
Fast Ethernet |
Porte |
8 x 10/100 |
Kapacitet |
VLANs understøttet: 64 ¦ IGMP-grupper: 256 |
Protokol til fjernadministration |
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
Egenskaber |
Datatransport, komplet duplex ydeevne, auto-negotiation, understøttet af BOOTP, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), DiffServ understøttet, IPv6 understøttet, Turbo Mode, til vægmontering, Quality of Service (QoS) |
Overensstemmelsesstandarder |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x |
Statusindikatorer |
Ports transmissionshastighed, strøm |
Ekspansionsåbninger |
2 (total) / 2 (fri) |
Nødvendig spænding |
DC 12/24/48 V |
Overensstemmelsesstandarder |
UL, TUV, cUL, EN 60950, EN55022, UL 60950, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IP30 |
Bredde |
12.49 cm |
Dybde |
15.1 cm |
Højde |
15.72 cm |
Service & Support |
Begrænset garanti - 5 år |
Min. driftstemperatur |
-40 °C |
Maks. driftstemperatur |
75 °C |
Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
Min. lagertemperatur |
-40 °C |
Maks. Opbevaringstemperatur |
85 °C |
The versatile modular design of the compact EDS-600 series Ethernet switch allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-600's modular design lets you install up to 3 Gigabit Ethernet ports and 16 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, RSTP/STP, and MSTP helps increase the reliability and availability of your industrial Ethernet network. The EDS-600 series supports several reliable and intelligent functions, including IEEE 1588 PTPv2, EtherNet/IP, Modbus/TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.
