| Produktbeskrivelse
|
Moxa CP-602U-I-T - seriel adapter - PCI - seriel x 2
|
| Enhedstype
|
Seriel adapter
|
| Model
|
Indstikskort
|
| Grænseflade (bus) type
|
PCI
|
| Bus-spænding
|
Universal (3,3 V & 5,0 V)
|
| Porte
|
Seriel x 2
|
| Dataoverførselshastighed
|
1 Mbps
|
| Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
| Enhedstype |
Seriel adapter |
| Model |
Indstikskort |
| Grænseflade (bus) type |
PCI |
| Bus-spænding |
Universal (3,3 V & 5,0 V) |
| Porte |
Seriel x 2 |
| Forbindelsesteknologi |
Kabling |
| Dataoverførselshastighed |
1 Mbps |
| Statusindikatorer |
Send, modtag |
| Egenskaber |
2 KV Optical Isolation Protection |
| Interface |
2 x serial - 9-pin D-Sub (DB-9) |
| MTBF (forventet tid mellem fejl) |
1,989,990 timer |
| Overensstemmelsesstandarder |
EN 61000-3-2, IEC 61000-4-11, EN 61000-3-3, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, WEEE |
| Med software |
Drivers & Utilities |
| Service & Support |
Begrænset garanti - 5 år |
| Min. driftstemperatur |
-40 °C |
| Maks. driftstemperatur |
85 °C |
| Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |

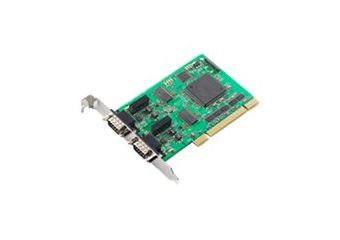

Moxa's new CP-602U-I CAN (Controller Area Network) interface board supports the Universal PCI interface. As a stand-alone CAN controller, the CP-602U-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602U-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide the bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602U-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.
