Produktbeskrivelse
|

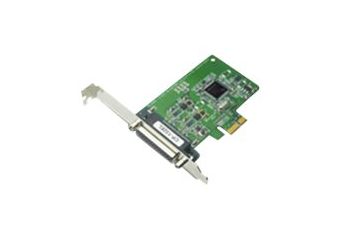

Moxa CP-132EL-DB9M - seriel adapter
|
Enhedstype
|
Seriel adapter
|
Model
|
Indstikskort - lavprofil
|
Grænseflade (bus) type
|
PCI Express x1
|
Porte
|
RS-422/485 x 2
|
Dimensioner (B x D x H)
|
10.197 cm x 6.721 cm
|
Dataforbindelsesprotokol
|
RS-422, RS-485
|
Dataoverførselshastighed
|
921.6 Kbps
|
Systemkrav
|
Microsoft Windows 95, UnixWare 7, SCO OpenServer 5, Microsoft Windows 2000, Linux 2.4.x, Microsoft Windows 98/ME/NT/2000, Linux 2.6.x, SunSoft Solaris x86 10, SCO OpenServer 6, SunSoft Solaris x64 10, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bit), QNX 6
|
Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
Enhedstype |
Seriel adapter |
Model |
Indstikskort - lavprofil |
Grænseflade (bus) type |
PCI Express x1 |
Porte |
RS-422/485 x 2 |
Forbindelsesteknologi |
Kabling |
Dataforbindelsesprotokol |
RS-422, RS-485 |
Dataoverførselshastighed |
921.6 Kbps |
Egenskaber |
Datatransport, 15 KV Electrostatic Discharge Protection |
Interface |
1 x RS-422/485 - 25-pin D-Sub (DB-25) ¦ 2 x RS-422/485 - 9-pin D-Sub (DB-9) (på kabel) |
Udstyr inkluderet |
Simpelt beslag |
Medfølgende ledninger |
1 x serielt kabel (ekstern) - 50 cm |
MTBF (forventet tid mellem fejl) |
1,530,088 time(r) |
Overensstemmelsesstandarder |
FCC Klasse B-certificeret, EN 61000-3-2, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, FCC Part 15 B, RoHS, WEEE |
Med software |
Drivers & Utilities |
OS nødvendig |
Microsoft Windows 95, UnixWare 7, SCO OpenServer 5, Microsoft Windows 2000, Linux 2.4.x, Microsoft Windows 98/ME/NT/2000, Linux 2.6.x, SunSoft Solaris x86 10, SCO OpenServer 6, SunSoft Solaris x64 10, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bit), QNX 6 |
Dybde |
10.197 cm |
Højde |
6.721 cm |
Service & Support |
Begrænset garanti - 5 år |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
55 °C |
Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
The CP-132EL is a 2-port PCI Express boards designed for industrial automation applications that require a long distance, multi-point, PC-based data acquisition solution. The CP-132EL boards have 2 RS-422/485 serial ports. In RS-485 mode, the boards can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km.
