| Produktbeskrivelse
|

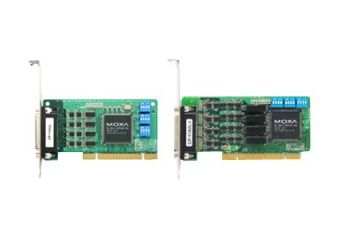

Moxa CP-114UL-I-DB25M - seriel adapter - PCI
|
| Enhedstype
|
Seriel adapter
|
| Model
|
Indstikskort
|
| Grænseflade (bus) type
|
PCI
|
| Dimensioner (B x D x H)
|
13 cm x 6.44 cm
|
| Dataforbindelsesprotokol
|
RS-232, RS-422, RS-485
|
| Dataoverførselshastighed
|
921.6 Kbps
|
| Systemkrav
|
Microsoft DOS, SCO OpenServer, UnixWare 7, FreeBSD, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Linux 2.4.x, Linux 2.6.x, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows CE 6.0, QNX 6, Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bit), Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 95/98/ME/NT/2000/XP/Vista/7/8
|
| Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
| Enhedstype |
Seriel adapter |
| Model |
Indstikskort |
| Grænseflade (bus) type |
PCI |
| Forbindelsesteknologi |
Kabling |
| Dataforbindelsesprotokol |
RS-232, RS-422, RS-485 |
| Dataoverførselshastighed |
921.6 Kbps |
| Interface |
1 x RS-232/422/485 - 44-pin D-Sub (DB-44) ¦ 4 x RS-232/422/485 - 25-pin D-Sub (DB-25) (på kabel) |
| Medfølgende ledninger |
1 x serielt kabel (ekstern) |
| MTBF (forventet tid mellem fejl) |
114,223 time(r) |
| Overensstemmelsesstandarder |
EN55022, IEC 61000-4-2, IEC 61000-4-3, EN55024, FCC Part 15 B, EMC, FCC, WEEE, EMI, China RoHS |
| OS nødvendig |
Microsoft DOS, SCO OpenServer, UnixWare 7, FreeBSD, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Linux 2.4.x, Linux 2.6.x, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows CE 6.0, QNX 6, Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bit), Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 95/98/ME/NT/2000/XP/Vista/7/8 |
| Dybde |
13 cm |
| Højde |
6.44 cm |
| Service & Support |
Begrænset garanti - 5 år |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
55 °C |
| Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
Moxa's CP-114UL-I series of multiport serial boards are designed to be used by industrial automation system integrators for long distance, multi-point, PC-based data acquisition applications. On-chip Automatic Data Direction Control for precision RS-485 communication requires precise timing control to enable and disable the line driver. The Moxa Turbo Serial Engine chip that powers the CP-114UL-I boards come with on-chip ADDC, which makes RS-485 as easy to use as RS-232. In RS-485 mode, the serial port can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long distance RS-485 communication, 2 kV electrical isolation protections are available to prevent equipment damage.
