| Produktbeskrivelse
|
Moxa CB-602I - seriel adapter - PC/104+ - Controller Area Network (CAN) x 2
|
| Enhedstype
|
Seriel adapter
|
| Model
|
Indstiksmodul
|
| Grænseflade (bus) type
|
PC/104+
|
| Porte
|
Controller Area Network (CAN) x 2
|
| Dimensioner (B x D x H)
|
9.02 cm x 9.59 cm
|
| Dataforbindelsesprotokol
|
Controller Area Network (CAN)
|
| Dataoverførselshastighed
|
1 Mbps
|
| Systemkrav
|
Microsoft Windows 2000, Linux 2.6.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Linux 3.x
|
| Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
| Enhedstype |
Seriel adapter |
| Model |
Indstiksmodul |
| Grænseflade (bus) type |
PC/104+ |
| Porte |
Controller Area Network (CAN) x 2 |
| Forbindelsesteknologi |
Kabling |
| Dataforbindelsesprotokol |
Controller Area Network (CAN) |
| Dataoverførselshastighed |
1 Mbps |
| Egenskaber |
2 KV Optical Isolation Protection |
| Interface |
2 x CAN |
| MTBF (forventet tid mellem fejl) |
248,563 time(r) |
| Overensstemmelsesstandarder |
EN 61000-3-3, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-4-11, RoHS, EN 61000-4-8, WEEE, China RoHS |
| Med software |
Drivers & Utilities |
| OS nødvendig |
Microsoft Windows 2000, Linux 2.6.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Linux 3.x |
| Bredde |
9.02 cm |
| Dybde |
9.59 cm |
| Service & Support |
Begrænset garanti - 5 år |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
55 °C |
| Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |

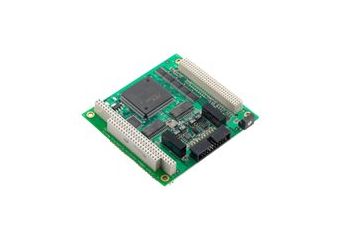

Moxa’s new CB-602I CAN (Controller Area Network) interface board supports the PC/104-Plus interface. Optional DB9 and DB25 connection cables are available for connecting to CAN interface device. The CB-602I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide the bus arbitration and error detection. The 2 kV isolation make the boards suitable for use in harsh industrial environments.
