Produktbeskrivelse
|

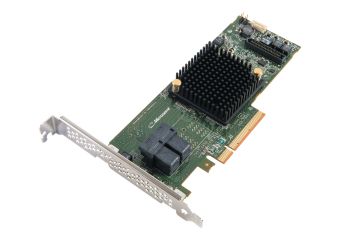

Microchip Adaptec RAID 7805 - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x8
|
Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort - lavprofil
|
Bustype
|
PCIe 3.0 x8
|
Interface
|
SATA 6Gb/s / SAS 6Gb/s
|
Dataoverførselshastighed
|
6 Gbit/s
|
Buffer størrelse
|
1024 MB
|
Understøttede enheder
|
Diskarray (RAID)
|
Antal kanaler
|
8
|
Maks. antal lagerenheder
|
8
|
RAID-niveau
|
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 1E, RAID 60
|
Systemkrav
|
SunSoft Solaris, FreeBSD, Red Hat Linux, Microsoft Windows, Debian Linux, Red Hat Fedora Core, openSUSE, Ubuntu, VMware ESX
|
Dimensioner (B x D x H)
|
16.7 cm x 6.4 cm
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Enhedstype |
Styreenhed til lagring (RAID) - indstikskort - lavprofil |
Host Bus |
PCIe 3.0 x8 |
Interface |
SATA 6Gb/s / SAS 6Gb/s |
Dataoverførselshastighed |
6 Gbit/s |
Buffer størrelse |
1024 MB |
Understøttede enheder |
Diskarray (RAID) |
Antal kanaler |
8 |
Maks. antal lagerenheder |
8 |
RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 1E, RAID 60 |
Interface |
2 x SATA 6Gb/s / SAS 6Gb/s |
Kompatible åbninger |
1 x PCI Express 3.0 x8 - low-profile |
MTBF (forventet tid mellem fejl) |
700,000 timer |
Overensstemmelsesstandarder |
UL, VCCI, C-Tick, cUL, FCC, RoHS, KCC |
OS nødvendig |
SunSoft Solaris, FreeBSD, Red Hat Linux, Microsoft Windows, Debian Linux, Red Hat Fedora Core, openSUSE, Ubuntu, VMware ESX |
Service & Support |
Begrænset garanti - 3 år |
Dybde |
16.7 cm |
Højde |
6.4 cm |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
55 °C |
The Microsemi Adaptec series 7 RAID adapter family features a 24 port PM8015 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 6 Gb/s SAS ports to enable a new generation of high performance RAID adapters that are unmatched by any other ROC in the industry. Adaptec series 7 RAID adapters are available with 8 native SAS ports.
While the PCIe Gen3 interface doubles bandwidth to the host compared to PCIe Gen2, it requires at least 16 6 Gb/s SAS ports to double the bandwidth to the storage devices.
