| Produktbeskrivelse
|

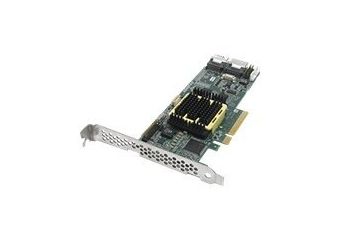

Microchip Adaptec MaxIQ 5805Q - styreenhed til lagring (RAID) - SATA 3Gb/s / SAS - PCIe x8
|
| Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort - lavprofil
|
| Bustype
|
PCIe x8
|
| Interface
|
SATA 3Gb/s / SAS
|
| Dataoverførselshastighed
|
3 Gbit/s
|
| Buffer størrelse
|
512 MB
|
| Understøttede enheder
|
Harddisk, diskarray (RAID)
|
| Antal kanaler
|
8
|
| Maks. antal lagerenheder
|
256
|
| RAID-niveau
|
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 1E, RAID 5EE, RAID 60
|
| Dimensioner (B x D x H)
|
16.7 cm x 6.4 cm
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Enhedstype |
Styreenhed til lagring (RAID) - indstikskort - lavprofil |
| Host Bus |
PCIe x8 |
| Interface |
SATA 3Gb/s / SAS |
| Dataoverførselshastighed |
3 Gbit/s |
| Buffer størrelse |
512 MB |
| Understøttede enheder |
Harddisk, diskarray (RAID) |
| Antal kanaler |
8 |
| Maks. antal lagerenheder |
256 |
| RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 1E, RAID 5EE, RAID 60 |
| Processor |
1.2 GHz |
| Interface |
2 x SATA 3Gb/s / SAS - 36 pin 4i Mini MultiLane (intern) |
| Kompatible åbninger |
1 x PCI Express x8 - low-profile |
| MTBF (forventet tid mellem fejl) |
873,402 timer |
| Overensstemmelsesstandarder |
UL, VCCI, C-Tick, FCC, RoHS |
| Med software |
Adaptec Storage Manager, MaxIQ SSD Cache Software |
| Service & Support |
Begrænset garanti - 3 år |
| Dybde |
16.7 cm |
| Højde |
6.4 cm |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
55 °C |
The Adaptec MaxIQ 5805Q Storage Controller with SSD caching offers both high I/O transaction and high bandwidth processing when configured with cost-effective, high-capacity SATA drives or high-performance SAS drives. Using SSD/HDD hybrid arrays, the Adaptec 5805Q delivers up to 8x faster performance and up to 70% savings in capital and operating costs compared to HDD-only arrays.
