Produktbeskrivelse
|

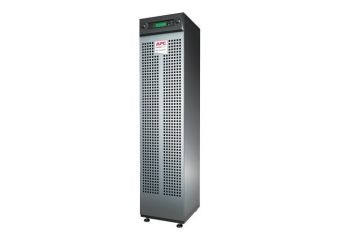

MGE Galaxy 3500 with 2 Battery Modules - UPS - 12 kW - 15000 VA
|
Enhedstype
|
UPS - ekstern
|
Vægt
|
402 kg
|
Indgangskabler
|
Tre faser
|
Indgangspænding
|
AC 380/400/415 V
|
Udgangspænding
|
AC 380/400/415 V ± 5%
|
Strømkapacitet
|
12 kW / 15000 VA
|
Input-stik
|
Hardwire 5-wire (3PH + N + G)
|
Output-stikforbindelser
|
1 x hardwire 4-wire (3PH + G) ¦ 1 x hardwire 5-wire (3PH + N + G) ¦ 1 x Terminalblok (skrueklemmer)
|
Batteri
|
Blysyre
|
Antal batterier
|
2
|
Netværk
|
RS-232
|
Protokol til fjernadministration
|
SNMP, HTTP
|
Udstyr inkluderet
|
Bolt ned-bøjler
|
Dimensioner (B x D x H)
|
35.2 cm x 83.8 cm x 149 cm
|
Producentgaranti
|
1 års garanti
|
Produktdatablad |
|
Enhedstype |
UPS - ekstern |
UPS-teknologi |
On-line |
Indgangspænding |
AC 380/400/415 V |
Indgangspændingsområde |
AC 304 - 477 V |
Indgangspændingsområde (justerbar) |
AC 340 - 460 V |
Med frekvens |
47 - 53 Hz |
Indgangskabler |
Tre faser |
Nødvendig frekvens |
40 - 70 Hz |
Input-stik |
Hardwire 5-wire (3PH + N + G) |
Detaljer om strømudgangskonnektorer |
1 x hardwire 4-wire (3PH + G) ¦ 1 x hardwire 5-wire (3PH + N + G) ¦ 1 x Terminalblok (skrueklemmer) |
Udgangspænding |
AC 380/400/415 V ± 5% - 47 - 53 Hz |
Strømkapacitet |
12 kW / 15000 VA |
Bølgeform udgang |
Sinewave |
Antal |
2 |
Teknologi |
Blysyre |
Genopladningstid |
5 timer |
Grænseflade til fjernstyring |
RS-232 |
Protokol til fjernadministration |
SNMP, HTTP |
Interface |
1 x administration (RS-232) ¦ 1 x EPO (emergency power off) |
Ekspansionsåbninger |
1 (total) / 0 (fri) x SmartSlot |
Udstyr inkluderet |
Bolt ned-bøjler |
Medfølgende ledninger |
Serielt kabel - ekstern |
Egenskaber |
Hørlig alarm, nødstrøm slukket, LCD-skærm, indbygget vedligeholdelses-bypass, indbygget statisk bypass |
Overensstemmelsesstandarder |
ISO 9001, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, EN 50091-2, IEC 62040-3, IEC 62040-1-1 |
Service & Support |
Begrænset garanti - 1 år ¦ Installation - tilgængelighed: 8 timer pr. dag / mandag-fredag ¦ Konfiguration - tilgængelighed: 8 timer pr. dag / mandag-fredag |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
40 °C |
Fugtighedsgrad ved brug |
0 - 95% |
Lydudbredelse |
51.3 dBA |
Bredde |
35.2 cm |
Dybde |
83.8 cm |
Højde |
149 cm |
Vægt |
402 kg |
Bredde ved forsendelse |
65 cm |
Dybde ved forsendelse |
106 cm |
Højde ved forsendelse |
164 cm |
Vægt ved forsendelse |
433 kg |
MGE Galaxy 3500 offers centralized 3 phase power protection with the reliability of the MGE product family. Ideal for commercial and technical facilities as well as industrial applications, the MGE Galaxy 3500 includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability. The parallel capability for redundancy and capacity, and extended run battery frames provide increased flexibility. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators. The built in Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface. Serviceability is greatly enhanced by user-replaceable batteries, front access servicing, and included start-up service for maximized configurability. All these features make the MGE Galaxy 3500 the easiest UPS in its class to deploy, manage and maintain.
