Produktdatablad |
|
| Produkttype |

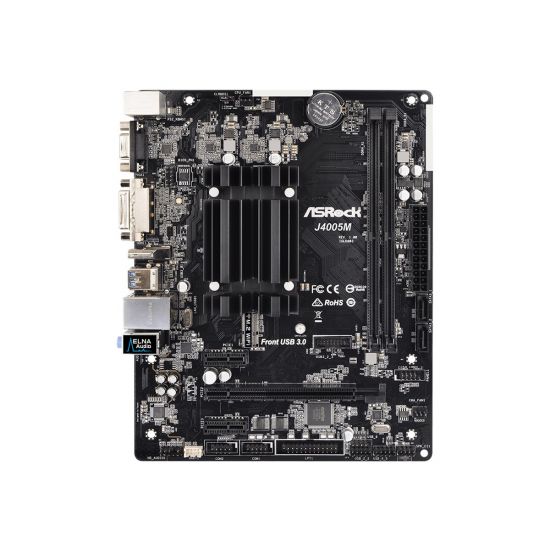

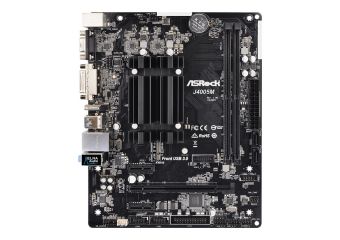

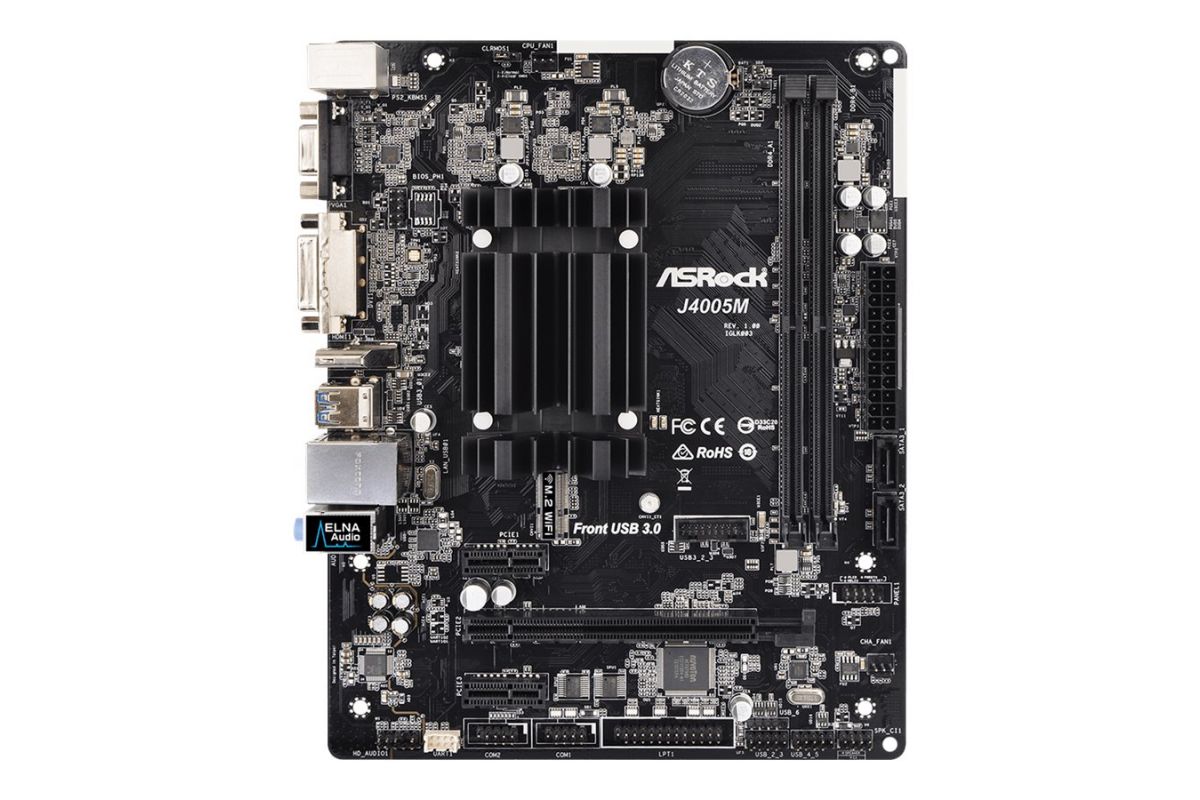

Bundkort - micro-ATX |
| Processor |
Intel Celeron J4005 (Dual-Core) |
| Maks. størrelse |
8 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur |
| Grafik controller |
Intel UHD Graphics 600 |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC887 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Realtek RTL8111E |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
2 x DIMM 288-pins ¦ 2 x PCIe 2.0 x1 ¦ 1 x M.2 socket (Key E) ¦ 1 x PCIe 2.0 x16 (x1 modus) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA |
| Interface |
1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x PS/2-tastatur ¦ 1 x PS/2-mus ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x VGA ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud - mini-jack |
| Interne interfaces |
2 x USB 3.1 Gen 1 - intern stik ¦ 5 x USB 2.0 - intern stik ¦ 1 x audio - intern stik ¦ 1 x højttaler - intern stik ¦ 2 x seriel - intern stik ¦ 1 x parallel - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
JumperFree, UEFI BIOS, ACPI 5.0 support, SMBIOS 3,0 support |
| Hardwareovervågning |
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding, detektion af åben etui |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL) |
| Hardware egenskaber |
ASRock Instant Flash, All-Solid Capacitor motherboard Design, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, Sapphire Black PCB, ASRock Live Update |
| Overensstemmelsesstandarder |
Plug and Play, FCC, EuP Ready, ErP Ready, ACPI 5.0 |
| Bredde |
22.6 cm |
| Dybde |
17.8 cm |
