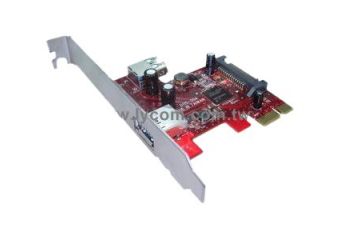

LyCOM UB-115 - USB-adapter
| Produktbeskrivelse | LyCOM UB-115 - USB-adapter |
| Enhedstype | USB-adapter |
| Model | Indstikskort - lavprofil |
| Grænseflade (bus) type | PCI Express 2.0 x1 |
| Porte | USB 3.0 x 2 |
| Dataforbindelsesprotokol | USB, USB 2.0, USB 3.0 |
| Dataoverførselshastighed | 5 Gbps |
| Processor | NEC |
| Overensstemmelsesstandarder | USB 1.1, USB 2.0, USB 3.0, xHCI |
| Systemkrav | Microsoft Windows Server 2008 R2, Linux Kernel 2.6.31 eller nyere, Microsoft Windows Vista / XP / 7 (64-bit versioner), Microsoft Windows Vista / XP / 7 / 8 |
Produktdatablad |
|
| Enhedstype | USB-adapter |
| Model | Indstikskort - lavprofil |
| Grænseflade (bus) type | PCI Express 2.0 x1 |
| Porte | USB 3.0 x 2 |
| Forbindelsesteknologi | Kabling |
| Dataforbindelsesprotokol | USB, USB 2.0, SuperSpeed USB 3.0 |
| Dataoverførselshastighed | 5 Gbps |
| Overensstemmelsesstandarder | USB 1.1, USB 2.0, USB 3.0, xHCI |
| Processor | NEC |
| Interface | 1 x USB 3.0 - 4 pin USB Type A (intern) ¦ 1 x USB 3.0 - 4 pin USB Type A (ekstern) |
| Udstyr inkluderet | Simpelt beslag |
| Overensstemmelsesstandarder | RoHS |
| OS nødvendig | Microsoft Windows Server 2008 R2, Linux Kernel 2.6.31 eller nyere, Microsoft Windows Vista / XP / 7 (64-bit versioner), Microsoft Windows Vista / XP / 7 / 8 |
- 1 internal and 1 external USB 3.0 5 Gbps type A 2 ports
- Supports PCIe 1.0 and PCIe 2.0 motherboard
- PCIe Gen 2 x 1 lane host adapter
- Compliant with universal serial bus 3.0 specification revision 1.0
- Compliant with Intel eXtensible Host Controller Interface (xHCI) specification 0.95
- All USB ports can handle SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
- Support any USB3.0, USB2.0 and USB1.1 devices
- Compliant with PCI Express specification 2.0 low profile PCI form factor
- Supports Max 1.5A USB 5V bus power one USB 3.0 port
- USB bus power automatically from PCIe bus or from PC power supply through 15Pin SATA power connector
- Supports 64bit and 32bit Windows 7, Vista, XP and 64bit 2008 R2
- Supported natively in Windows 8, Linux kernel 2.6. 31 or later
- Chipset: NEC
- Fully RoHS compliant
