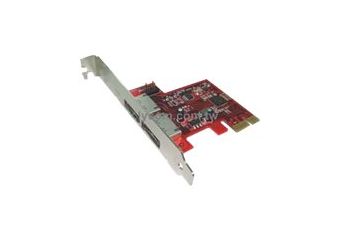

LyCOM - styreenhed til lagring (RAID) - SATA 6Gb/s - PCIe 2.0
| Produktbeskrivelse | LyCOM - styreenhed til lagring (RAID) - SATA 6Gb/s - PCIe 2.0 |
| Enhedstype | Styreenhed til lagring (RAID) - indstikskort - lavprofil |
| Bustype | PCIe 2.0 |
| Interface | SATA 6Gb/s |
| Dataoverførselshastighed | 6 Gbit/s |
| Understøttede enheder | Diskarray (RAID), BD-drev, solid state drev |
| RAID-niveau | RAID 0, RAID 1 |
| Systemkrav | Linux, Apple MacOS X 10.x, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Vista / 7 / 8, Microsoft Windows Vista / 7 / 8 (64-bit versioner), Microsoft Windows Server 2012 (32/64-bit) |
Produktdatablad |
|
| Enhedstype | Styreenhed til lagring (RAID) - indstikskort - lavprofil |
| Host Bus | PCIe 2.0 |
| Interface | SATA 6Gb/s |
| Dataoverførselshastighed | 6 Gbit/s |
| Understøttede enheder | Diskarray (RAID), BD-drev, solid state drev |
| RAID-niveau | RAID 0, RAID 1 |
| Interface | 2 x SATA 6Gb/s (intern) |
| Udstyr inkluderet | Simpelt beslag |
| Egenskaber | Native Command Queuing (NCQ) |
| Overensstemmelsesstandarder | RoHS |
| OS nødvendig | Linux, Apple MacOS X 10.x, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Vista / 7 / 8, Microsoft Windows Vista / 7 / 8 (64-bit versioner), Microsoft Windows Server 2012 (32/64-bit) |
- 6Gbps eSATA III External 2 Ports
- Hardware RAID controller to offload host CPU for max performance
- Supports PCIe 1.0 and PCIe 2.0 motherboard
- Compliant with 5Gbps PCI Express 2.0
- Fully compliant with Serial ATA specifications 3.0 transfer rate of 6Gbps
- Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
- Supports Non-Raid, Hardware RAID 0, Hardware RAID 1 for HDD & SSD
- Supports Non-Raid mode for Optical Drive and Blu-Ray Drive
- Supports ATA and ATAPI commands
- Supports Native Command Queuing (NCQ)
- Supports one SATA FIS-based or Command-based Port Multiplier
- SATA Hot-plug capability
- Two Pin headers on board for LED connection
- Low Profile PCIe Form Factor
- Regular size PCIe bracket on board and Low Profile bracket included
- BIOS on board support Windows OS booting
- 64bit / 32bit Windows 8, Win7, Vista, 2008, 2012, Linux and Mac 10.x built-in AHCI inbox driver support, no additional driver required
- Supports Windows XP driver
- Supports Windows GUI and BIOS to configure Hardware RAID 0, RAID 1 and max two RAID groups
- Fully RoHS compliant
