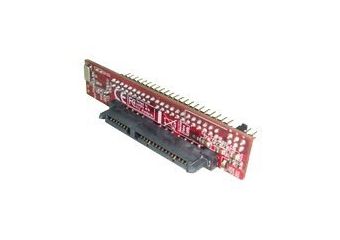

LyCOM ST-157 - lagringskontrol - SATA 3Gb/s - Ultra ATA/133
| Produktbeskrivelse | LyCOM ST-157 - lagringskontrol - SATA 3Gb/s - Ultra ATA/133 |
| Enhedstype | Lagringskontrol - intern |
| Bustype | Ultra ATA/133 |
| Interface | SATA 3Gb/s |
| Dataoverførselshastighed | 3 Gbit/s |
| Understøttede enheder | Harddisk |
| Maks. antal lagerenheder | 1 |
| Systemkrav | Apple MacOS, Microsoft Windows |
Produktdatablad |
|
| Enhedstype | Lagringskontrol - intern |
| Host Bus | Ultra ATA/133 |
| Interface | SATA 3Gb/s |
| Dataoverførselshastighed | 3 Gbit/s |
| Understøttede enheder | Harddisk |
| Maks. antal lagerenheder | 1 |
| Interface | 1 x SATA 3Gb/s - SATA ¦ 1 x SATA 3Gb/s - SATA strøm |
| Tilslutninger | 1 lager - ATA-133 - 44-PIN IDC |
| Overensstemmelsesstandarder | RoHS |
| OS nødvendig | Apple MacOS, Microsoft Windows |
- Support SATA SSD and SATA drive
- 44Pin 2.0mm IDE male connector for 5V DC and ATA signals
- Compliant with Serial ATA 2.6
- Supports Serial ATA Generation 2 transfer rate of 3Gbps
- Support Master, Slave and Cable Select Modes by jumper setting
- ATA/ATAPI PIO mode data transfer
- ATA/ATAPI UDMA data transfer rate of 150, 100, 66, 44, 33, 25, 16.7 MB/s
- Tag Command Queuing (Max 32 entries)
- SATA Hot-plug
- SATA Power Save modes
- ATA/ATAPI-7 Streaming feature set
- 100% OS-transparent hardware bridge converter to support PC, MAC and Linux, no driver required
- Supports drive larger than 137GB
- Fully RoHS Compliant
