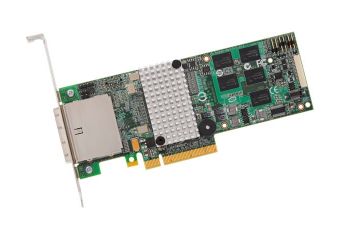

LSI MegaRAID SAS 9280-8e styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 2.0 x8

Producent Fujitsu
Produkt nr. S26361-F3593-L501
EAN 4049699262456
Varenummer 132317
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 10-08-2017
Mere info
13.741,- DKK
Produktbeskrivelse LSI MegaRAID SAS 9280-8e - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 2.0 x8
Enhedstype Styreenhed til lagring (RAID) - indstikskort - lav profil
Bustype PCIe 2.0 x8
Interface SATA 6Gb/s / SAS 6Gb/s
Dataoverførselshastighed 600 MBps
Buffer størrelse 512 MB
Understøttede enheder Harddisk, diskarray (RAID)
Antal kanaler 8
Maks. antal lagerenheder 240
RAID-niveau RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Systemkrav Microsoft Windows Server 2003, Novell NetWare 6.5, SunSoft Solaris x86 10, SCO OpenServer 6, FreeBSD 7.0, SuSE Linux Enterprise Server 11, VMware ESXi 4.0, Microsoft Windows 2000/XP/Vista/7, Microsoft Windows Server 2008, Red Hat Enterprise Linux 4 eller nyere
Dimensioner (B x D x H) 16.8 cm x 6.4 cm
Producentgaranti 3 års garanti
Designet for PRIMERGY BX620 S6, RX100 S6, RX100 S7, RX100 S7p, RX200 S5, RX200 S6, RX200 S7, RX300 S5, RX300 S6, RX300 S7, RX350 S7, RX600 S4, RX600 S5, RX600 S6, RX900 S1, RX900 S2, SX150 S8 Universal Storage Server, TX120 S3p, TX150 S7, TX150 S8, TX200 S5, TX200 S6, TX200 S7, TX300 S5, TX300 S6, TX300 S7
Enhedstype Styreenhed til lagring (RAID) - indstikskort - lav profil
Host Bus PCIe 2.0 x8
Interface SATA 6Gb/s / SAS 6Gb/s
Dataoverførselshastighed 600 MBps
Buffer størrelse 512 MB
Understøttede enheder Harddisk, diskarray (RAID)
Antal kanaler 8
Maks. antal lagerenheder 240
RAID-niveau RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Processor LSI LSISAS2108 800 MHz
Interface 2 x SATA 6Gb/s / SAS 6Gb/s - 26-pin 4 skærmet Mini MultiLane SAS (SFF-8088) (ekstern)
Kompatible åbninger 1 x PCI Express 2.0 x8 - low-profile
Overensstemmelsesstandarder FCC Klasse B-certificeret, FCC Klasse A certificeret, UL, VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, EN55022, RRL, UL 1950, EN 61000-3-3, EN55024, CSA C22.2
Med software LSI MegaRAID Management Suite
OS nødvendig Microsoft Windows Server 2003, Novell NetWare 6.5, SunSoft Solaris x86 10, SCO OpenServer 6, FreeBSD 7.0, SuSE Linux Enterprise Server 11, VMware ESXi 4.0, Microsoft Windows 2000/XP/Vista/7, Microsoft Windows Server 2008, Red Hat Enterprise Linux 4 eller nyere
Service & Support Begrænset garanti - 3 år
Dybde 16.8 cm
Højde 6.4 cm
Maks. driftstemperatur 60 °C
Designet for Fujitsu PRIMERGY BX620 S6, RX100 S6, RX100 S7, RX100 S7p, RX200 S5, RX200 S6, RX200 S7, RX300 S5, RX300 S6, RX300 S7, RX350 S7, RX600 S4, RX600 S5, RX600 S6, RX900 S1, RX900 S2, SX150 S8 Universal Storage Server, TX120 S3p, TX150 S7, TX150 S8, TX200 S5, TX200 S6, TX200 S7, TX300 S5, TX300 S6, TX300 S7

Today's external enclosure designs are based on architectures that support both SATA and SAS drives. The MegaRAID SAS 9280-8e, with eight external SATA+SAS ports, is ideal for configuring these external enclosures with your choice of high-performance SAS hard drives, high-capacity SATA hard drives or energy-efficient solid state drives (SSDs). With data transfer rates of up to 6Gb/s per port, the MegaRAID SAS 9280-8e bring users features and improved performance, while continuing to support all the features of the previous 3Gb/s SATA+SAS generation. This feature line controller employs RAID-on-Chip technology, complies with the PCI Express 2.0 specification and provides additional data security using LSI SafeStore encryption services.
