Produktbeskrivelse
|

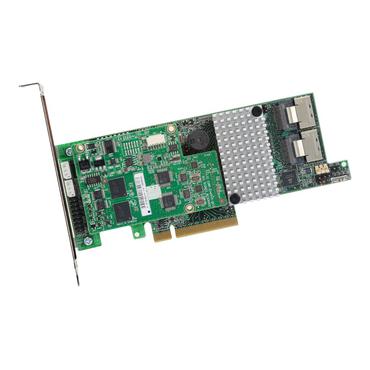

LSI MegaRAID SAS 9271-8i - styreenhed til lagring (RAID) - SAS - PCIe 3.0 x8
|
Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort - lavprofil
|
Bustype
|
PCIe 3.0 x8
|
Interface
|
SAS
|
Dataoverførselshastighed
|
6 Gbit/s
|
Buffer størrelse
|
1 GB
|
Understøttede enheder
|
Harddisk, diskarray (RAID)
|
Antal kanaler
|
8
|
Maks. antal lagerenheder
|
128
|
RAID-niveau
|
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
|
Systemkrav
|
SunSoft Solaris x86, Novell NetWare, Linux, FreeBSD, Microsoft Windows Server 2003, Microsoft Windows Vista / 2000 / XP, Microsoft Windows Server 2008, VMware ESX
|
Microsoft Certification
|
Kompatibel med Windows 7
|
Dimensioner (B x D x H)
|
16.8 cm x 6.4 cm
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Enhedstype |
Styreenhed til lagring (RAID) - indstikskort - lavprofil |
Host Bus |
PCIe 3.0 x8 |
Interface |
SAS |
Dataoverførselshastighed |
6 Gbit/s |
Buffer størrelse |
1 GB |
Understøttede enheder |
Harddisk, diskarray (RAID) |
Antal kanaler |
8 |
Maks. antal lagerenheder |
128 |
RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
Processor |
LSISAS2208 |
Maximum LUNs |
64 |
Interface |
8 x SAS - 36 pin 4i Mini MultiLane (intern) |
Kompatible åbninger |
1 x PCI Express 3.0 x8 |
Egenskaber |
Load Balancing, DDF compliant Configuration on Disk (COD), Online RAID Level Migration (RLM) |
MTBF (forventet tid mellem fejl) |
1,031,514 timer |
Kompatibel med Windows 7 |
Udstyr og software der er "Kompatibel med Windows 7" har Microsofts forsikring i at disse produkter har bestået kompatibilitets- og pålidelighedsprøver med 32-bit og 64-bit Windows 7. |
Overensstemmelsesstandarder |
FCC Klasse B-certificeret, FCC Klasse A certificeret, VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, EN55022, RRL, UL 1950, EN 61000-3-3, EN55024, MIC, CSA 22.2 |
Med software |
LSI WebBIOS Configuration Utility, MegaRAID Storage Manager, MegaCLI |
OS nødvendig |
SunSoft Solaris x86, Novell NetWare, Linux, FreeBSD, Microsoft Windows Server 2003, Microsoft Windows Vista / 2000 / XP, Microsoft Windows Server 2008, VMware ESX |
Service & Support |
Begrænset garanti - 3 år |
Dybde |
16.8 cm |
Højde |
6.4 cm |
Maks. driftstemperatur |
60 °C |
The eight-port MegaRAID SAS 9271-8i, built on dual-core 6Gb/s MegaRAID SAS technology, provides a powerful combination of intelligent performance, enterprise RAID data protection and proven interoperability with the latest PCI Express 3.0 server platforms.
