| Produktbeskrivelse
|

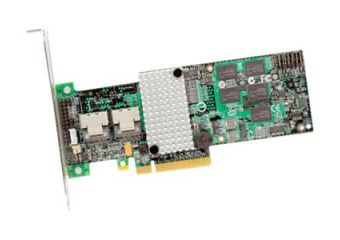

LSI MegaRAID SAS 9260-8i - styreenhed til lagring (RAID) - SATA 3Gb/s / SAS - PCIe 2.0 x8
|
| Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort - lavprofil
|
| Bustype
|
PCIe 2.0 x8
|
| Interface
|
SATA 3Gb/s / SAS
|
| Dataoverførselshastighed
|
6 Gbit/s
|
| Buffer størrelse
|
512 MB
|
| Understøttede enheder
|
Harddisk, diskarray (RAID)
|
| Antal kanaler
|
8
|
| Maks. antal lagerenheder
|
32
|
| RAID-niveau
|
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
|
| Microsoft Certification
|
Kompatibel med Windows 7
|
| Dimensioner (B x D x H)
|
16.8 cm x 6.4 cm
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Enhedstype |
Styreenhed til lagring (RAID) - indstikskort - lavprofil |
| Host Bus |
PCIe 2.0 x8 |
| Interface |
SATA 3Gb/s / SAS |
| Dataoverførselshastighed |
6 Gbit/s |
| Buffer størrelse |
512 MB |
| Understøttede enheder |
Harddisk, diskarray (RAID) |
| Antal kanaler |
8 |
| Maks. antal lagerenheder |
32 |
| RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Processor |
LSI LSISAS2108 800 MHz |
| Interface |
2 x SATA 3Gb/s / SAS - 36 pin 4i Mini MultiLane (intern) |
| Kompatible åbninger |
1 x PCI Express 2.0 x8 - low-profile |
| Kompatibel med Windows 7 |
Udstyr og software der er "Kompatibel med Windows 7" har Microsofts forsikring i at disse produkter har bestået kompatibilitets- og pålidelighedsprøver med 32-bit og 64-bit Windows 7. |
| Overensstemmelsesstandarder |
FCC Klasse B-certificeret, FCC Klasse A certificeret, UL, VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, EN55022, RRL, UL 1950, EN 61000-3-3, EN55024, CSA C22.2 |
| Med software |
LSI MegaRAID Management Suite |
| Service & Support |
Begrænset garanti - 3 år |
| Dybde |
16.8 cm |
| Højde |
6.4 cm |
LSI MegaRAID SATA+SAS controllers provide a new level of reliability, availability, and performance to businesses that are facing storage challenges driven by unprecedented data growth. With data transfer rates of up to 6Gb/s per port, the MegaRAID SAS 9260-8i brings users features and improved performance, while continuing to support all the features of the previous 3Gb/s SATA+SAS generation. The MegaRAID value line controller, ideal for inside-the-box connectivity, employs the latest in RAID-on-Chip technology, complies with the PCI Express 2.0 specification, and provides additional data security using LSI SafeStore encryption services.
6Gb/s SAS is designed for backward compatibility with 3Gb/s SAS as well as with 6Gb/s and 3Gb/s SATA hard drives. Regardless of the drive speed, 6Gb/s MegaRAID controllers will deliver significant performance improvements in both read and write applications as compared to their 3Gb/s predecessors. Other features of the 6Gb/s MegaRAID SATA+SAS controllers include greater signal integrity using Decision Feedback Equalization, support for more sophisticated SAS topologies using Expander Self-discovery/Self-configuration, and additional safeguards to enhance data protection.
LSI is pleased to introduce SafeStore encryption services, which offer instant secure erase and local key management for self-encrypting drives (SEDs). This technology represents a significant step forward in securing a drive's data from any unauthorized access or modification resulting from theft, loss, or repurposing of drives. Instant secure erase permanently removes data when repurposing or decommissioning SEDs. SafeStore local key management provides the necessary management and protection of SEDs using a simple pass phrase, security key identifier, and security key file, which can be set and applied to all SEDs assigned to a MegaRAID controller. This removes the complexity of managing each SED's unique encryption key, and essentially relieves the administrator from most of the daily tasks of securing data.
