| Produktbeskrivelse
|

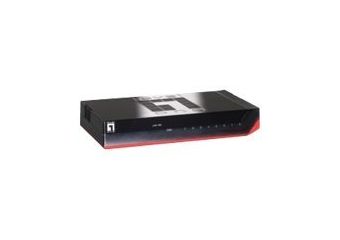

LevelOne GSW-0807 - switch - 8 porte
|
| Enhedstype
|
Switch - 8 porte
|
| Undertype
|
Gigabit Ethernet
|
| Porte
|
8 x 10/100/1000
|
| MAC adresse table størrelse
|
8K indtastningshukommelse
|
| Egenskaber
|
Auto-uplink (auto MDI/MDI-X), til vægmontering, Jumbo Frames support
|
| Overensstemmelsesstandarder
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
|
Produktdatablad |
|
| Enhedstype |
Switch - 8 porte |
| Pakningstype |
Desktop |
| Undertype |
Gigabit Ethernet |
| Porte |
8 x 10/100/1000 |
| MAC adresse table størrelse |
8K indtastningshukommelse |
| Egenskaber |
Auto-uplink (auto MDI/MDI-X), til vægmontering, Jumbo Frames support |
| Overensstemmelsesstandarder |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Interface |
8 x 1000Base-T RJ-45 |
| Strømenhed |
Ekstern strømforsyning |
| Monteringspakke |
Inkluderet |
| Overensstemmelsesstandarder |
FCC Klasse A certificeret |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
10 - 90% |
The GSW-0807 device is powerful, high-performance Gigabit Ethernet switch, with all ports capable of 10, 100 or 1000Mbps auto-negotiation operation (NWay), which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. Moreover, the 10/100/1000Mbps auto-sensing ability provides an easy way to migrate 10/100Mbps to 1000Mbps network with no pain. The GSW-0807 switch also supports auto MDI/MDI-X function. Each port could be used to connect to another switch or hub with no crossover RJ-45 cable.
