Produktdatablad |
|
Enhedstype |

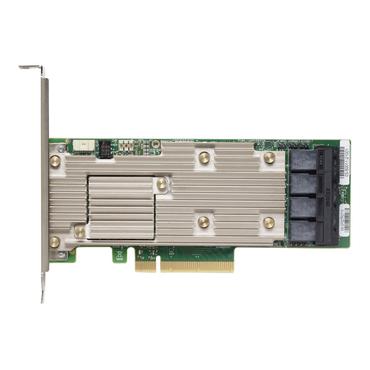

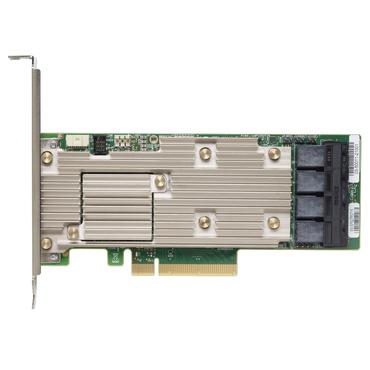

Styreenhed til lagring (RAID) - indstikskort - lavprofil |
Host Bus |
PCIe 3.0 x8 |
Interface |
SATA / SAS 12Gb/s |
Dataoverførselshastighed |
12 Gbit/s |
Buffer størrelse |
4 GB |
Understøttede enheder |
Harddisk, diskarray (RAID), solid state drev |
Antal kanaler |
16 |
Maks. antal lagerenheder |
16 |
RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
Processor |
LSI LSISAS3516 |
Interface |
4 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (intern) |
Egenskaber |
CacheVault flash cache-beskyttelse, FastPath, SafeStore |
Overensstemmelsesstandarder |
EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
OS nødvendig |
SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 med Xen til AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi) |
Service & Support |
Begrænset garanti - 1 år |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
55 °C |
Fugtighedsgrad ved brug |
20 - 90 % (ikke-kondenserende) |
Designet for |
Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR530 7X07 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem SR950 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST550 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
