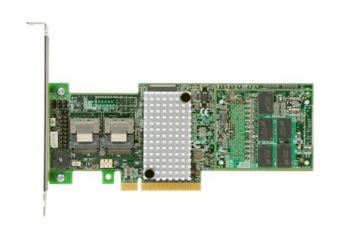

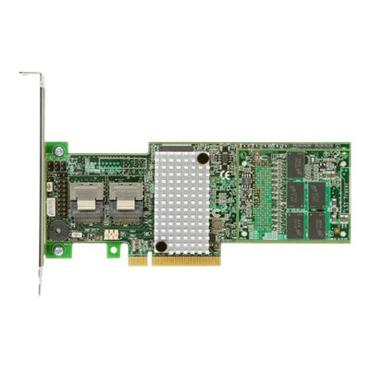

Lenovo ServeRAID M5110 - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x8
Produktbeskrivelse | Lenovo ServeRAID M5110 - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x8 |
Enhedstype | Styreenhed til lagring (RAID) - indstikskort - lavprofil |
Bustype | PCIe 3.0 x8 |
Interface | SATA 6Gb/s / SAS 6Gb/s |
Dataoverførselshastighed | 6 Gbit/s |
Understøttede enheder | Diskarray (RAID) |
Antal kanaler | 8 |
Maks. antal lagerenheder | 32 |
RAID-niveau | RAID 0, RAID 1, RAID 10 |
Systemkrav | SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Datacenter, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Web Server 2008 x64 Edition |
Dimensioner (B x D x H) | 1.5 cm x 16.8 cm x 6.9 cm |
Vægt | 77 g |
Producentgaranti | 1 års garanti |
Designet for | System x3100 M5; x3300 M4; x3500 M4; x3530 M4; x3550 M4; x3630 M4; x3650 M4 BD |
Produktdatablad |
|
Enhedstype | Styreenhed til lagring (RAID) - indstikskort - lavprofil |
Host Bus | PCIe 3.0 x8 |
Interface | SATA 6Gb/s / SAS 6Gb/s |
Dataoverførselshastighed | 6 Gbit/s |
Understøttede enheder | Diskarray (RAID) |
Antal kanaler | 8 |
Maks. antal lagerenheder | 32 |
RAID-niveau | RAID 0, RAID 1, RAID 10 |
Processor | IBM PowerPC 800 MHz |
Interface | 2 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (intern) |
Kompatible åbninger | 1 x PCI Express 3.0 x8 - half-length, full-height |
Udstyr inkluderet | Simpelt beslag, beslag i fuld højde |
Overensstemmelsesstandarder | VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, EN55022, RRL, UL 1950, EN 61000-3-3, EN55024, FCC Part 15 B, MIC, KCC, FCC Part 15 A, IEC 950 |
Med software | MegaRAID Storage Manager |
OS nødvendig | SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows Web Server 2008, Microsoft Windows Server 2008 Datacenter, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Red Hat Linux Enterprise Server 5 x64 Edition, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Web Server 2008 x64 Edition |
Service & Support | Begrænset garanti - 1 år |
Bredde | 1.5 cm |
Dybde | 16.8 cm |
Højde | 6.9 cm |
Vægt | 77 g |
Min. driftstemperatur | 10 °C |
Maks. driftstemperatur | 32 °C |
Fugtighedsgrad ved brug | 20 - 80 % (ikke-kondenserende) |
Designet for | Lenovo System x3100 M5 ¦ Lenovo System x3300 M4 ¦ Lenovo System x3500 M4 ¦ Lenovo System x3530 M4 ¦ Lenovo System x3550 M4 ¦ Lenovo System x3630 M4 ¦ Lenovo System x3650 M4 BD |
