Produktbeskrivelse
|

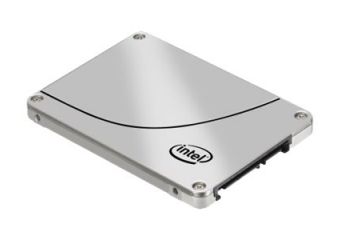

Lenovo S3500 Enterprise Value - SSD - 480 GB - SATA 6Gb/s
|
Type
|
Solid state-drev - hot-swap
|
Kapacitet
|
480 GB
|
NAND Flashhukommelses-type
|
20nm fler-niveaus celle (MLC)
|
Model
|
2.5"
|
Grænseflade
|
SATA 6Gb/s
|
Dataoverførselshastighed
|
600 MBps
|
Egenskaber
|
Enhanced Power Loss Data Protection, Termisk drosling, ende-til-ende datastibeskyttelse, S.M.A.R.T., 256-bit AES
|
Dimensioner (B x D x H)
|
70 mm x 100 mm x 7 mm
|
Vægt
|
70 g
|
Producentgaranti
|
1 års garanti
|
Designet for
|
System x3100 M4 (2.5"); x3100 M5 (2.5"); x3250 M4 (2.5"); x3300 M4 (2.5"); x3500 M4 (2.5"); x3530 M4 (2.5"); x3550 M4 (2.5"); x3650 M4 (2.5"); x3690 X5 (2.5"); x3750 M4 (2.5"); x3850 X5 (2.5")
|
Produktdatablad |
|
Enhedstype |
Solid state-drev - hot-swap |
Kapacitet |
480 GB |
NAND Flashhukommelses-type |
20nm fler-niveaus celle (MLC) |
Model |
2.5" |
Grænseflade |
SATA 6Gb/s |
Egenskaber |
Enhanced Power Loss Data Protection, Termisk drosling, ende-til-ende datastibeskyttelse, S.M.A.R.T., 256-bit AES |
Bredde |
70 mm |
Dybde |
100 mm |
Højde |
7 mm |
Vægt |
70 g |
Overføringshastighed, drev |
600 MBps (ekstern) |
Intern datahastighed |
500 MBps (læs) / 410 MBps (skriv) |
4KB Random Read |
75000 IOPS |
4KB Random Write |
11000 IOPS |
MTBF (forventet tid mellem fejl) |
2,000,000 timer |
Interface |
1 x SATA 6 Gb/s - 7 pin Serial ATA |
Kompatibel bås |
2.5" |
Strømforbrug |
5 Watt |
Overensstemmelsesstandarder |
UL, VCCI, C-Tick, BSMI, CB, KCC |
Service & Support |
Begrænset garanti - 1 år |
Min. driftstemperatur |
0 °C |
Maks. driftstemperatur |
70 °C |
Fugtighedsgrad ved brug |
8 - 85 % (ikke-kondenserende) |
Modstandsdygtighed over for stød |
1000 g @ 0.5ms |
Vibration tolerance |
2.17 g @ 5-700 Hz (operativ) / 3.13 g @ 5-800 Hz (non-operativ) |
Designet for |
Lenovo System x3100 M4 (2.5") ¦ Lenovo System x3100 M5 (2.5") ¦ Lenovo System x3250 M4 (2.5") ¦ Lenovo System x3300 M4 (2.5") ¦ Lenovo System x3500 M4 (2.5") ¦ Lenovo System x3530 M4 (2.5") ¦ Lenovo System x3550 M4 (2.5") ¦ Lenovo System x3650 M4 (2.5") ¦ Lenovo System x3690 X5 (2.5") ¦ Lenovo System x3750 M4 (2.5") ¦ Lenovo System x3850 X5 (2.5") |
The S3500 SATA 2.5-inch MLC Enterprise Value solid-state drives (SSD) for IBM System x employ MLC NAND flash memory and a 6 Gbps SATA interface to provide an affordable solution with industry leading performance. It is targeted at workloads that require high I/O performance in random read operations, including content delivery, streaming video and big data analytics.
