| Produktbeskrivelse
|

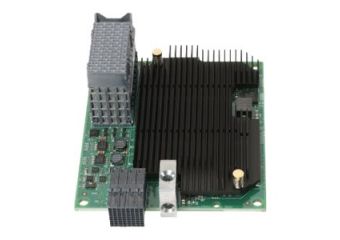

Lenovo Flex System FC5054 4-port 16Gb FC Adapter - netværksadapter - 2 x PCIe 3.0 x8 - 16Gb Fibre Channel x 4
|
| Enhedstype
|
Netværksadapter
|
| Model
|
Indstikskort
|
| Grænseflade (bus) type
|
2 x PCI Express 3.0 x8
|
| Porte
|
16Gb Fibre Channel x 4
|
| Dimensioner (B x D x H)
|
10 cm x 8 cm
|
| Vægt
|
13 g
|
| Dataforbindelsesprotokol
|
4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel
|
| Pristype
|
Customer-replaceable Unit (CRU)
|
| Producentgaranti
|
1 års garanti
|
| Designet for
|
Flex System p260 Compute Node; p460 Compute Node; x240 Compute Node; x240 M5; x280 X6 Compute Node; x440 Compute Node; x480 X6 Compute Node; x880 X6 Compute Node
|
Produktdatablad |
|
| Enhedstype |
Netværksadapter |
| Model |
Indstikskort |
| Grænseflade (bus) type |
2 x PCI Express 3.0 x8 |
| Porte |
16Gb Fibre Channel x 4 |
| Forbindelsesteknologi |
Kabling |
| Dataforbindelsesprotokol |
4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel |
| Fiberkanal |
FC-AL, FC-AL-2, SCSI-FCP |
| Egenskaber |
Auto-negotiation, Extended Message-Signaled Interrupts (MSI-X) |
| Interface |
4 x 16Gb Fibre Channel |
| Overensstemmelsesstandarder |
BSMI, CISPR 22 Klasse A, GOST, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Klasse A, UL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, FCC Part 15 A, FCC CFR47 Part 15 B, ICES Class A, ANSI C63.4, IEC 60950-1 Second Edition, VCCI Class A, KN24, GOST-R 51318.22-99, GOST-R 51318.24-99, KN22 Class A, GOST-R 51317.3.2, GOST-R 51317.3.3 |
| Pristype |
Customer-replaceable Unit (CRU) |
| Bredde |
10 cm |
| Dybde |
8 cm |
| Vægt |
13 g |
| Service & Support |
Begrænset garanti - ombytning - 1 år |
| Designet for |
Lenovo Flex System p260 Compute Node ¦ Lenovo Flex System p460 Compute Node ¦ Lenovo Flex System x240 Compute Node ¦ Lenovo Flex System x240 M5 ¦ Lenovo Flex System x280 X6 Compute Node ¦ Lenovo Flex System x440 Compute Node ¦ Lenovo Flex System x480 X6 Compute Node ¦ Lenovo Flex System x880 X6 Compute Node |
The Flex System FC5054 4-port 16Gb FC Adapters enable the highest FC speed access for Flex System compute nodes to an external storage area network (SAN). These adapters are based on the proven Emulex Fiber Channel stack, and work with 16 Gb Flex System Fiber Channel switch modules.
