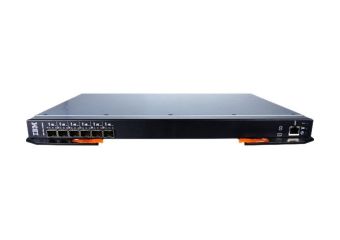

Lenovo Flex System FC3171 8Gb SAN Switch - switch - 20 porte - Administreret - plug-in modul
| Produktbeskrivelse | Lenovo Flex System FC3171 8Gb SAN Switch - switch - 20 porte - Administreret - plug-in modul |
| Enhedstype | Switch - 20 porte - Administreret |
| Pakningstype | Plug-in modul |
| Undertype | Fibre Channel |
| Porte | 14 x 8Gb Fibre Channel + 6 x 8Gb Fibre Channel SFP+ + 2 x 10/100/1000 + 1 x 10/100 |
| Præstation | Videresendelsespræstation (fuld duplex): 320 Gbps ¦ Port-til-port latens: 4 ms |
| Protokol til fjernadministration | SNMP, Telnet, SSH |
| Egenskaber | IPv6 understøttet, IPv4 support, Transparent (N_Port ID Virtualization - NPIV) modussupport, Non-Disruptive Code Load Activation (NDCLA) support, Registered State Change Notification (RSCN) support, standard-baseret FC-SW2 interoperabilitetssupport, Configurable Fabric Address Notification (FAN) support, Call Home-funktionssupport, vitale produktdata (VPD) support |
| Dimensioner (B x D x H) | 40.1 cm x 31.7 cm x 3 cm |
| Vægt | 3 kg |
| Producentgaranti | 1 års garanti |
Produktdatablad |
|
| Enhedstype | Switch - 20 porte - Administreret |
| Pakningstype | Plug-in modul |
| Undertype | Fibre Channel |
| Porte | 14 x 8Gb Fibre Channel + 6 x 8Gb Fibre Channel SFP+ + 2 x 10/100/1000 + 1 x 10/100 |
| Præstation | Videresendelsespræstation (fuld duplex): 320 Gbps ¦ Port-til-port latens: 4 ms |
| Fiberkanal | FC-AL, FC-AL-2, FC-FG, FC-FLA, FC-GS-3, FC-PH-2, FC-PH-3, FC-PLDA, FC-SW-2, FC-Tape, FC-VI |
| Protokol til fjernadministration | SNMP, Telnet, SSH |
| Egenskaber | IPv6 understøttet, IPv4 support, Transparent (N_Port ID Virtualization - NPIV) modussupport, Non-Disruptive Code Load Activation (NDCLA) support, Registered State Change Notification (RSCN) support, standard-baseret FC-SW2 interoperabilitetssupport, Configurable Fabric Address Notification (FAN) support, Call Home-funktionssupport, vitale produktdata (VPD) support |
| Statusindikatorer | Portstatus, fejl, status |
| Interface | 14 x 8Gb Fibre Channel ¦ 2 x Ethernet 1000 administration ¦ 6 x 8Gb Fibre Channel - SFP/SFP+ ¦ 1 x 100Base-TX - RJ-45 administration ¦ Seriel: 1 x RS-232 - mini-USB type A administration |
| Overensstemmelsesstandarder | C-Tick, CISPR 22 Klasse A, GOST, EN 61000-3-2, EN55022, ICES-003, VCCI Klasse A ITE, EN 61000-3-3, EN55024, EN55022 Klasse A, CISPR 22, EMC, MIC, BSMI CNS 13438, FCC CFR47 Part 15 B, EN55024 Class A |
| Med software | Fabric Security, QuickTools |
| Bredde | 40.1 cm |
| Dybde | 31.7 cm |
| Højde | 3 cm |
| Vægt | 3 kg |
| Service & Support | Begrænset garanti - ombytning - 1 år |
| Min. driftstemperatur | 10 °C |
| Maks. driftstemperatur | 49 °C |
| Fugtighedsgrad ved brug | 8 - 80 % (ikke-kondenserende) |
| Lagerfugtighedsgrad | 5 - 80 % (ikke-kondenserende) |
The IBM Flex System FC3171 8Gb SAN Switch is a full-fabric Fiber Channel component with expanded functionality. The SAN switch supports high speed traffic processing for IBM Flex System configurations, and offers scalability in external SAN size and complexity, and enhanced systems management capabilities. The IBM Flex System FC3171 8Gb Pass-thru supports a fully interoperable solution for seamless integration of the Fiber Channel initiators to an existing fabric. The pass-thru module uses industry-standard N Port ID virtualization (NPIV) technology to provide a cost-effective connectivity solution for the IBM Flex System chassis.
