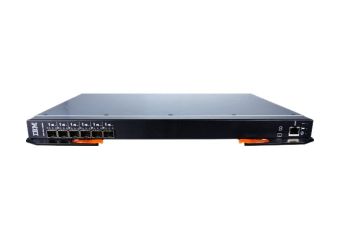

Lenovo Flex System FC3171 8Gb SAN Switch - switch - 20 porte - Administreret - plug-in modul
| Produktbeskrivelse | Lenovo Flex System FC3171 8Gb SAN Switch - switch - 20 porte - Administreret - plug-in modul |
| Enhedstype | Switch - 20 porte - Administreret |
| Pakningstype | Plug-in modul |
| Undertype | Fibre Channel |
| Porte | 14 x 8Gb Fibre Channel + 6 x 8Gb Fibre Channel SFP+ |
| Præstation | Videresendelsespræstation (fuld duplex): 320 Gbps ¦ Stoflatens: 4 ms |
| Protokol til fjernadministration | Telnet, SNMP 3, SSH |
| Egenskaber | IPv6 understøttet, IPv4 support, Transparent (N_Port ID Virtualization - NPIV) modussupport, Non-Disruptive Code Load Activation (NDCLA) support, Registered State Change Notification (RSCN) support, standard-baseret FC-SW2 interoperabilitetssupport, Configurable Fabric Address Notification (FAN) support, Call Home-funktionssupport, vitale produktdata (VPD) support, Power-on self-test (POST) |
| Dimensioner (B x D x H) | 40.1 cm x 31.7 cm x 3 cm |
| Vægt | 3 kg |
| Pristype | Field Replaceable Unit (FRU) |
| Producentgaranti | 1 års garanti |
Produktdatablad |
|
| Enhedstype | Switch - 20 porte - Administreret |
| Pakningstype | Plug-in modul |
| Undertype | Fibre Channel |
| Porte | 14 x 8Gb Fibre Channel + 6 x 8Gb Fibre Channel SFP+ |
| Præstation | Videresendelsespræstation (fuld duplex): 320 Gbps ¦ Stoflatens: 4 ms |
| Fiberkanal | FC-AL, FC-AL-2, FC-FG, FC-FLA, FC-GS-3, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SW-2, FC-Tape, FC-VI |
| Protokol til fjernadministration | Telnet, SNMP 3, SSH |
| Egenskaber | IPv6 understøttet, IPv4 support, Transparent (N_Port ID Virtualization - NPIV) modussupport, Non-Disruptive Code Load Activation (NDCLA) support, Registered State Change Notification (RSCN) support, standard-baseret FC-SW2 interoperabilitetssupport, Configurable Fabric Address Notification (FAN) support, Call Home-funktionssupport, vitale produktdata (VPD) support, Power-on self-test (POST) |
| Statusindikatorer | Portstatus, fejl, status |
| Interface | 14 x 8Gb Fibre Channel intern ¦ 6 x 8Gb Fibre Channel SFP+ ¦ 2 x administration (Gigabit LAN) intern ¦ 1 x 100Base-TX RJ-45 administration ¦ 1 x administration (mini-USB) |
| Overensstemmelsesstandarder | C-Tick, CISPR 22 Klasse A, EN 61000-3-2, VCCI Klasse A ITE, EN 61000-3-3, EN55022 Klasse A, EMC, MIC, BSMI CNS 13438, AS/NZS CISPR 22, GOST-R 29216-91, EN55024:1998, EN55022:1998, FCC CFR47 Part 15 B Class A, ICES-003 issue 3, EN55022:1998 + A2:2003, GB 9524:1998, EN 55024:1998+A1:2001+A2:2003 |
| Pristype | Field Replaceable Unit (FRU) |
| Med software | Fabric Security, QuickTools |
| Bredde | 40.1 cm |
| Dybde | 31.7 cm |
| Højde | 3 cm |
| Vægt | 3 kg |
| Service & Support | Begrænset garanti - ombytning - 1 år |
| Min. driftstemperatur | 10 °C |
| Maks. driftstemperatur | 49 °C |
| Fugtighedsgrad ved brug | 8 - 80 % (ikke-kondenserende) |
| Min. lagertemperatur | -40 °C |
| Maks. Opbevaringstemperatur | 65 °C |
| Lagerfugtighedsgrad | 5 - 80 % (ikke-kondenserende) |
The Lenovo Flex System FC3171 8Gb SAN Switch is a full-fabric Fiber Channel component with expanded functionality. The SAN switch supports high speed traffic processing for Flex System configurations, and offers scalability in external SAN size and complexity, and enhanced systems management capabilities. The Lenovo Flex System FC3171 8Gb Pass-thru supports a fully interoperable solution for seamless integration of the Fiber Channel initiators to an existing fabric. The pass-thru module uses industry-standard N_Port ID virtualization (NPIV) technology to provide a cost-effective connectivity solution for the Flex System chassis.
