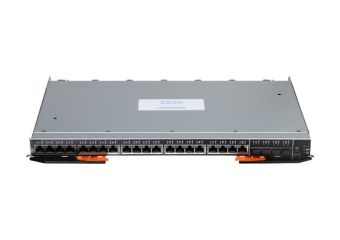

Lenovo Flex System EN2092 Scalable Switch - switch - 48 porte - Administreret - monterbar på stativ
| Produktbeskrivelse | Lenovo Flex System EN2092 Scalable Switch - switch - 48 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 48 porte - L3 - Administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | 10 Gigabit Ethernet |
| Porte | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Præstation | Kapacitet: 176 Gbps ¦ Switching-latens: 1.8 µs |
| Kapacitet | Virtuelle grænseflader (VLANs): 1024 ¦ MAC adresser: 32000 ¦ Multiple Spanning Tree Protocol instances: 32 ¦ Per VLAN Rapid Spanning Tree instanser: 128 ¦ Maksimum IPv4 med ACL påført: 128 ¦ IPv4 ruter (statisk): 128 ¦ Dynamiske ruter: 2048 ¦ IPv6 ruter (statisk): 128 ¦ Maksimum IPv6 med ACL påført: 128 |
| Jumborammesupport | 9216 byte |
| Routingprotokol | RIP, BGP-4, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, OSPFv3 |
| Protokol til fjernadministration | SNMP 1, RMON, SNMP 3, TFTP, SSH, CLI, SCP |
| Egenskaber | Understøttet af BOOTP, VLAN-understøttet, IGMP snooping, traffic-shaping, Vægtet rundsendelses kø (WRR), Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, firmware kan opgraderes, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), FTP server, port fremsendelse, DHCP videresendelse, Link Aggregation Control Protocol (LACP), Per-VLAN Rapid Spanning Tree (PVRST), NTP tidssynkronisering, link opsamlings-trunking, mærket VLAN, Switch Partition (SPAR), SFTP server, Type of Service (ToS), DiffServ Code Point (DSCP) support, IGMP-filtrering, Lenovo NMotion |
| Overensstemmelsesstandarder | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| Dimensioner (B x D x H) | 40.1 cm x 31.7 cm x 3 cm |
| Vægt | 3.7 kg |
| Producentgaranti | 1 års garanti |
Produktdatablad |
|
| Enhedstype | Switch - 48 porte - L3 - Administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | 10 Gigabit Ethernet |
| Porte | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Præstation | Kapacitet: 176 Gbps ¦ Switching-latens: 1.8 µs |
| Kapacitet | Virtuelle grænseflader (VLANs): 1024 ¦ MAC adresser: 32000 ¦ Multiple Spanning Tree Protocol instances: 32 ¦ Per VLAN Rapid Spanning Tree instanser: 128 ¦ Maksimum IPv4 med ACL påført: 128 ¦ IPv4 ruter (statisk): 128 ¦ Dynamiske ruter: 2048 ¦ IPv6 ruter (statisk): 128 ¦ Maksimum IPv6 med ACL påført: 128 |
| Jumborammesupport | 9216 byte |
| Routingprotokol | RIP, BGP-4, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, OSPFv3 |
| Protokol til fjernadministration | SNMP 1, RMON, SNMP 3, TFTP, SSH, CLI, SCP |
| Krypterings algoritme | 256-bit SHA |
| Autentificeringsmetode | RADIUS, TACACS+, LDAP |
| Egenskaber | Understøttet af BOOTP, VLAN-understøttet, IGMP snooping, traffic-shaping, Vægtet rundsendelses kø (WRR), Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, firmware kan opgraderes, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), FTP server, port fremsendelse, DHCP videresendelse, Link Aggregation Control Protocol (LACP), Per-VLAN Rapid Spanning Tree (PVRST), NTP tidssynkronisering, link opsamlings-trunking, mærket VLAN, Switch Partition (SPAR), SFTP server, Type of Service (ToS), DiffServ Code Point (DSCP) support, IGMP-filtrering, Lenovo NMotion |
| Overensstemmelsesstandarder | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| Interface | 20 x Gigabit LAN RJ-45 ¦ 28 x 1000Base-T intern ¦ 4 x 10 Gbit LAN SFP+ ¦ 2 x administration (Gigabit LAN) RJ-45 ¦ 1 x administration (mini-USB) |
| MTBF (forventet tid mellem fejl) | 381,936 timer |
| Overensstemmelsesstandarder | CISPR 22 Klasse A, BSMI CNS 13438 Class A, EN55024, EN55022 Klasse A, FCC CFR47 Part 15 B, ANSI C63.4-2003, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, VCCI Class A, GB 9254, AS/NZS CISPR22:2006 Class A, EN61000-3-2, EN61000-3-3, NIST SP800-131A |
| Bredde | 40.1 cm |
| Dybde | 31.7 cm |
| Højde | 3 cm |
| Vægt | 3.7 kg |
| Service & Support | Begrænset garanti - ombytning - 1 år |
The Lenovo Flex System EN2092 enables administrators to offer full layer 2 and 3 switching and routing capability. It simplifies the data center infrastructure and helps reduce the number of discrete devices, management consoles, and management systems. This scalable switch delivers cost savings with flexible port mapping and features efficient traffic management, increased external bandwidth, and strong Ethernet switching performance.
