| Produktbeskrivelse
|

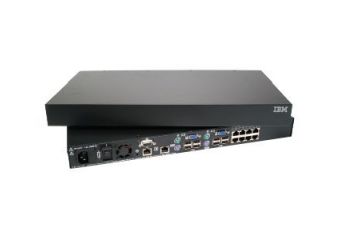

Lenovo 2x8 Local Console Manager - KVM switch - 8 porte - monterbar på stativ
|
| Enhedstype
|
KVM switch - 8 porte - CAT5
|
| Pakningstype
|
Monterbar på stativ 1U
|
| Undertype
|
KVM
|
| Porte
|
8 x KVM port(s)
|
| Antal KVM-brugere
|
2 lokalbrugere
|
| Effekt
|
AC 120/230 V (50/60 Hz)
|
| Dimensioner (B x D x H)
|
43.2 cm x 20.3 cm x 4.4 cm
|
| Vægt
|
3.6 kg
|
| Designet for
|
eServer 326; eServer xSeries 100; 206m; 226; 336; IntelliStation A Pro 6224; IntelliStation Z Pro 6221; System x3105; x3200; x3200 M2; x3250; x3250 M2; x3350; x3400; x3500; x3550; x3650; x3655; x3755; x3800; x3850; x3850 M2; x3950; x3950 E; x3950 M2
|
Produktdatablad |
|
| Enhedstype |
KVM switch - 8 porte |
| Pakningstype |
Monterbar på stativ 1U |
| Undertype |
KVM |
| Porte |
8 x KVM port(s) |
| Antal KVM lokalbrugere |
2 lokalbrugere |
| Servertilslutnng via partråd |
CAT5 |
| Tastatur / Musse Grænseflade |
PS/2 |
| Maksimum opløsning |
1280 x 1024 @ 75 Hz |
| Interface |
1 x seriel (RS-232) DB-9 ¦ 8 x KVM / USB RJ-45 ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 administration ¦ 2 x VGA HD-15 ¦ 2 x tastatur (PS/2) ¦ 2 x mus (PS/2) ¦ 1 x USB Type A |
| Strømenhed |
Intern strømforsyning |
| Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
| Strømforbrug ved drift |
12.5 Watt |
| Overensstemmelsesstandarder |
FCC Klasse A certificeret, C-Tick, BSMI, GOST, cUL, GS, VCCI Klasse A ITE, UL 60950, CB, MIC, ICES-003 Klasse A, IRAM |
| Bredde |
43.2 cm |
| Dybde |
20.3 cm |
| Højde |
4.4 cm |
| Vægt |
3.6 kg |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
50 °C |
| Fugtighedsgrad ved brug |
20 - 80% |
| Designet for |
IBM eServer 326 8848 ¦ IBM eServer xSeries 100 8486 ¦ IBM eServer xSeries 206m 8485, 8490 ¦ IBM eServer xSeries 226 8488, 8648 ¦ IBM eServer xSeries 336 8837 ¦ IBM IntelliStation A Pro 6224 ¦ IBM IntelliStation Z Pro 6221 ¦ Lenovo System x3105 4347 ¦ Lenovo System x3200 ¦ Lenovo System x3200 M2 ¦ Lenovo System x3250 ¦ Lenovo System x3250 M2 ¦ Lenovo System x3350 ¦ Lenovo System x3400 7973, 7974, 7975, 7976 ¦ Lenovo System x3500 7977 ¦ Lenovo System x3550 7978 ¦ Lenovo System x3650 7979 ¦ Lenovo System x3655 7985 ¦ Lenovo System x3755 ¦ Lenovo System x3800 ¦ Lenovo System x3850 8863, 8864 ¦ Lenovo System x3850 M2 ¦ Lenovo System x3950 8872, 8872 Datacenter High Availability, 8872 Datacenter High Availability with 32-bit Preload, 8872 Datacenter Scalable Model, 8878 ¦ Lenovo System x3950 E 8874, 8874 Datacenter High Availability with WS2003 Datacenter 32-bit 4-way COA, 8874 Datacenter High Availability with WS2003 Datacenter 64-bit 4-way COA, 8874 Datacenter Scalable Model, 8879 ¦ Lenovo System x3950 M2 |
The rack-based local console switch is designed to provide exceptional scalability and flexibility in managing data center environments. It gives server administrators the power to centrally manage multiple servers from a single keyboard, mouse, and display. The CAT5-based switch works across all major platforms, is rack-mountable, and provides access for up to two simultaneous local users.
