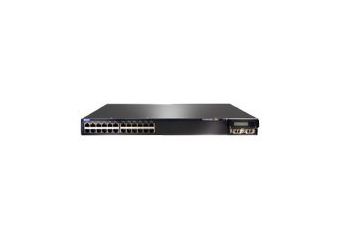

Juniper EX 4200 24T switch - 24 porte - Administreret

Producent: Juniper Networks
Produktnummer: EX4200-24T
EAN: 0832938037786
Varenummer: 823050
switch - 24 porte - Administreret
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet ved bestilling: 04-06-2019
Mere info
Gratis fragt med GLS til PakkeShop eller erhvervsadresse.
22.541,- DKK
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet ved bestilling: 04-06-2019
Mere info
Gratis fragt med GLS til PakkeShop eller erhvervsadresse.
Producent: Juniper Networks
Produktnummer: EX4200-24T
EAN: 0832938037786
Varenummer: 823050
Produktbeskrivelse Juniper EX 4200 24T - switch - 24 porte - Administreret
Enhedstype Switch - 24 porte - L3 - Administreret - kan stables
Pakningstype 1U
Undertype Gigabit Ethernet
Porte 24 x 10/100/1000
Power Over Ethernet (PoE) PoE
MAC adresse table størrelse 24K indtastningshukommelse
Routingprotokol OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, statisk IP routing, IGMPv3, police-baseret routing (PBR)
Protokol til fjernadministration SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, RMON, SNMP 3, HTTP, HTTPS, SSH-2
Egenskaber Hotswap-moduludskiftning, routing, Layer 3 switching, Layer 2 switching, DHCP-understøttelse, power over Ethernet (PoE), understøttet af ARP, understøttet af MPLS, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DoS attack beskyttelse, gem og send, IPv6 understøttet, Høj rådighedsgrad, 256 bit kryptering, DHCP snooping, Quality of Service (QoS), RADIUS support, Jumbo Frames support, DHCP server, DHCP proxy, Dynamic ARP Inspection (DAI), temperaturføler, Redundant trunk group (RTG), Time Domain Reflectometry (TDR), Virtuel Chassis teknologi, Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Graceful Route Engine Switchover (GRES)
Overensstemmelsesstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Effekt AC 120/230 V
Overskudsspænding Ja
Dimensioner (B x D x H) 44.2 cm x 41.7 cm x 4.3 cm
Vægt 7.5 kg
Enhedstype Switch - 24 porte - L3 - Administreret - kan stables
Pakningstype Desktop 1U
Undertype Gigabit Ethernet
Porte 24 x 10/100/1000
Power Over Ethernet (PoE) PoE
MAC adresse table størrelse 24K indtastningshukommelse
Max antal enheder i en stak 10
Routingprotokol OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, statisk IP routing, IGMPv3, police-baseret routing (PBR)
Protokol til fjernadministration SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, RMON, SNMP 3, HTTP, HTTPS, SSH-2
Krypterings algoritme MD5, TLS, PEAP, TTLS
Autentificeringsmetode RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Egenskaber Hotswap-moduludskiftning, routing, Layer 3 switching, Layer 2 switching, DHCP-understøttelse, power over Ethernet (PoE), understøttet af ARP, understøttet af MPLS, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DoS attack beskyttelse, gem og send, IPv6 understøttet, Høj rådighedsgrad, 256 bit kryptering, DHCP snooping, Quality of Service (QoS), RADIUS support, Jumbo Frames support, DHCP server, DHCP proxy, Dynamic ARP Inspection (DAI), temperaturføler, Redundant trunk group (RTG), Time Domain Reflectometry (TDR), Virtuel Chassis teknologi, Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Graceful Route Engine Switchover (GRES)
Overensstemmelsesstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Processor PowerPC: 1 GHz
RAM 1 GB
Flashhukommelse 1 GB Flash
Indbygget udstyr Status-LCD
Statusindikatorer LCD-skærm
Interface 1 x administration ¦ 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE ¦ 1 x netværks stack-enhed ¦ 16 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Ekspansionsåbninger 1 (total) / 1 (fri) x Ekspansionsholder
Strømenhed Intern strømforsyning - hot-plug
Antal installeret 1 (installeret) / 2 (maks.)
Overskudsspænding Ja
Nødvendig spænding AC 120/230 V
Strømforbrug ved drift 320 Watt
Overensstemmelsesstandarder TUV GS, CISPR 22 Klasse A, cUL, VCCI Klasse A ITE, EN55024, EN55022 Klasse A, CSA 22.2 No. 60950, ICES-003 Klasse A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS
Med software Juniper NetScreen-Security Manager
Bredde 44.2 cm
Dybde 41.7 cm
Højde 4.3 cm
Vægt 7.5 kg
Min. driftstemperatur 0 °C
Maks. driftstemperatur 45 °C
Fugtighedsgrad ved brug 10 - 85%

The Juniper Networks EX 4200 series Ethernet switches with Virtual Chassis technology combine the High Availability (HA) and carrier-class reliability of modular systems with the economics and flexibility of stackable platforms, delivering a high-performance, scalable solution for data center, campus and branch office environments.
Offering a full suite of Layer 2 and Layer 3 switching capabilities as part of the base software, the EX 4200 series switches satisfy a variety of high-performance applications, including branch, campus and data center access deployments as well as Gigabit Ethernet (GbE) aggregation deployments. A single 24-port or 48-port switch can be deployed initially; as requirements grow, Juniper Virtual Chassis technology allows up to 10 EX 4200 series switches to be interconnected over a 128 Gigabit-per-second (Gbps) backplane and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments. Flexible Gigabit Ethernet (GbE) and 10 Gigabit Ethernet (10GbE) uplink options enable high-speed connectivity to aggregation- or core-layer switches which connect multiple floors or buildings.
All EX 4200 series switches include HA features such as redundant, hot-swappable internal power supplies and field-replaceable, multi-blower fan trays to ensure maximum uptime. In addition, the base EX 4200 series switch models offer Class 3 power over Ethernet (PoE), delivering 15.4 watts on the first eight ports to support IP-enabled devices such as telephones, video cameras and wireless LAN (WLAN) access points for low-density converged networks. Full PoE options delivering 15.4 watts on all 24 or 48 ports are also available, making them ideal for high-density IP telephony deployments.
Each EX 4200 series switch includes an integrated application-specific integrated circuit (ASIC)-based packet-forwarding engine, the EX-PFE, while an integrated Route Engine (RE) delivers all control plane functionality. Based on field-proven Juniper technology, the Route Engine brings the same level of carrier-class performance and reliability to the EX 4200 series switches that Juniper routers bring to the world's largest service provider networks.
The EX 4200 series switches also leverage the same modular JUNOS software as Juniper router products, ensuring a consistent implementation and operation of each control plane feature across an entire Juniper infrastructure.
