Produktdatablad |
|
Enhedstype |

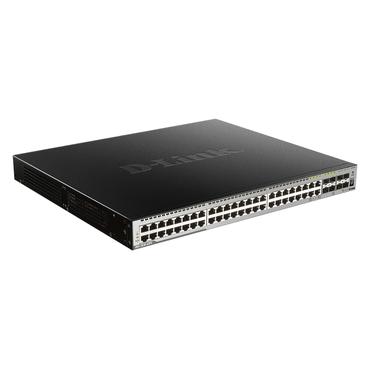

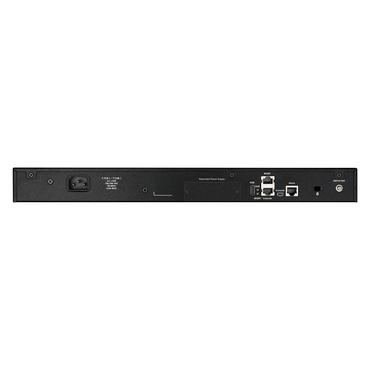

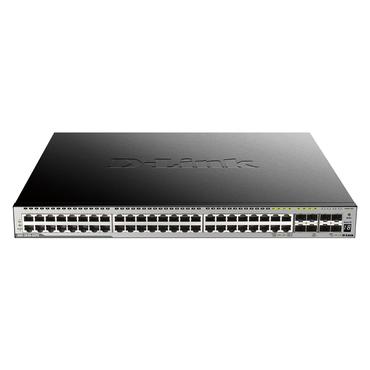

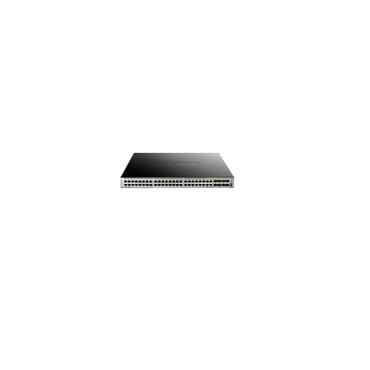

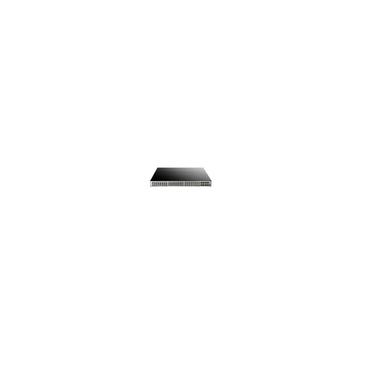

Switch - 44 porte - L3 - Administreret - kan stables |
Pakningstype |
Monterbar på stativ |
Porte |
44 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+ |
Power Over Ethernet (PoE) |
PoE+ |
PoE-budget |
370 W |
Præstation |
Omkoblingskapacitet: 176 Gbps ¦ Fremsendelsespræstation: 130.95 Mpps ¦ Stablende båndbredde: 80 Gbps |
Kapacitet |
IPv4 indtastning i routing-tabel: 16000 ¦ IPv6 indtastning i routing-tabel: 7000 ¦ IPv4 indtastning i videresendelses-tabel: 32000 ¦ IPv6 indtastning i videresendelses-tabel: 16000 ¦ VLAN-grupper: 4000 ¦ Dynamiske VLAN-indtastninger: 4000 ¦ Statiske ARP-indtastninger: 512 ¦ IPv4 ruter (statisk): 512 ¦ IPv6 ruter (statisk): 256 ¦ QoS hardware-køer pr. port: 8 ¦ ACL-indtastninger (udgang): 4000 ¦ ACL-indtastninger (indgang): 1000 |
MAC adresse table størrelse |
68K indtastningshukommelse |
Jumborammesupport |
12KB |
Max antal enheder i en stak |
9 |
Routingprotokol |
BGP-4, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, MSDP, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR), DVMRPv3, RIPng, MLDv2, MLD, BGP-4+, VRRPv2, Bidirectional Forwarding Detection (BFD), VRRPv3, URPF |
Protokol til fjernadministration |
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI |
Krypterings algoritme |
MD5, SSL, TLS 1.0, TLS 1.1 |
Autentificeringsmetode |
RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Egenskaber |
Understøttet af ARP, IGMP snooping, DoS attack beskyttelse, pakkefiltrering, portspejling, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, PIM snooping, tunneling, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MDL snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, båndbreddekontrol, LLDP support, Port Security, Remote Switch Port Analyzer (RSPAN), SNMP fælde, DHCP klient, Energy Efficient Ethernet, Dynamic VLAN Support (GVRP), Strict Priority (SP), Loopback, TFTP-klient, 4 MB pakkebuffer, 802.1x autentificering, Duplicated Address Detection, Two Rate Three Color Marking (TRTCM), Type of Service (ToS), Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, 2 blæsere, IGMP-filtrering, Single Rate Three Color Marking (SRTCM), IP-kildebekyttelse, Head of Line Blocking Prevention, værtsbaseret tilgangskontrol, Priority-Based Flow Control (PFC), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Link Aggregation, Management Information Base (MIB) II, Source-Specific Multicast (SSM), Digital Diagnostics Monitoring (DDM), Network Timing Protocol (NTP), Authentication, Authorization and Accounting (AAA), VLAN Double Tagging (Q-in-Q), Loop Guard, Ethernet Ring Protection Switching (ERPS) v2, VLAN-spejling, MLD-filtrering, Web-based Access Control (WAC), Switch Resource Management (SRM) |
Overensstemmelsesstandarder |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX, IEEE 802.1Qbb |
Statusindikatorer |
Status |
Interface |
48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 1000Base-X SFP ¦ 4 x 10GBase-X SFP+ ¦ 1 x konsol RJ-45 administration ¦ 1 x administration (Gigabit LAN) RJ-45 ¦ 1 x USB 2.0 Type A ¦ 1 x alarm RJ-45 ¦ 1 x konsol (mini-USB) |
Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
Strømforbrug ved drift |
54.1 Watt |
MTBF (forventet tid mellem fejl) |
199,929.76 timer |
Overensstemmelsesstandarder |
FCC Klasse A certificeret, VCCI, C-Tick, BSMI, cUL, CB, CCC, ITU Y.1731 |
Med software |
Standard Image (SI) Software |
Bredde |
44.1 cm |
Dybde |
38 cm |
Højde |
4.4 cm |
Vægt |
6.3 kg |
Service & Support |
Begrænset garanti - livstid |
Min. driftstemperatur |
-5 °C |
Maks. driftstemperatur |
50 °C |
Fugtighedsgrad ved brug |
10 - 95% |
Min. lagertemperatur |
-40 °C |
Maks. Opbevaringstemperatur |
70 °C |
Lagerfugtighedsgrad |
5 - 95% |
