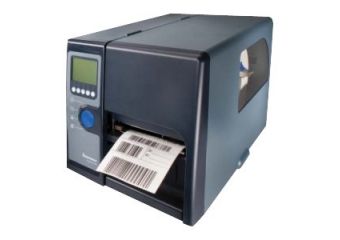

Intermec EasyCoder PD42

Intermec EasyCoder PD42 etiketprinter - monokrom - direkte termisk/termisk transfer

Producent Intermec
Produkt nr. PD42BJ1000002020
Varenummer 331572
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 01-12-2017
Mere info
7.840,- DKK
Produktbeskrivelse Intermec EasyCoder PD42 - etiketprinter - monokrom - direkte termisk/termisk transfer
Printertype Etiketprinter - direkte termisk/termisk transfer - monokrom
Vægt 13 kg
Maks. mediestørrelse Rulle (11,8 cm)
Max. mediestørelse (brugerdefineret) 118 mm
Printerhastighed Op til 150 mm/sek - maks. hastighed
Maks. opløsning (S og H) 203 dpi
Grænseflade USB, LAN, seriel
RAM installeret (maks.) 16 MB SDRAM
Flash Hukommelse Installeret (Max) 8 MB
Kortlæser Ja
Sprogsimulering Intermec Printer Language (IPL)
Stregkoder Kode 93, Matrix 2 af 5, Industribrug 2 af 5, Kode 39, UCC/EAN-128, Kode 49, GS1 DataBar, QR-kode, MaxiCode, Kode 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Coadabar, Code 128, Kode 11, Kode 16 K, 2 af 5 interfolieret, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, EAN-UCC Composite, Code 128B, Code 128C, Code 128A
Medietype Etiketter, endeløse ark, listepapir, lagerkort, billetter
Egenskaber Label Taken Sensor (LTS)
Netværk Udskriftsserver - IEEE 802.11b, IEEE 802.11g
Effekt AC 120/230 V
Dimensioner (B x D x H) 27.3 cm x 45.3 cm x 27 cm
Printertype Etiketprinter - direkte termisk/termisk transfer - monokrom
Printerhastighed Op til 150 mm/sek - maks. hastighed - 203 dpi
Indbyggede enheder Status-LCD
Forbindelsesteknologi Kabling
Grænseflade USB, LAN, seriel
Maks. opløsning (S og H) 203 dpi
Sprogsimulering Intermec Printer Language (IPL)
Egenskaber Label Taken Sensor (LTS)
Med skrifter 15 x TrueType
Stregkoder Kode 93, Matrix 2 af 5, Industribrug 2 af 5, Kode 39, UCC/EAN-128, Kode 49, GS1 DataBar, QR-kode, MaxiCode, Kode 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Coadabar, Code 128, Kode 11, Kode 16 K, 2 af 5 interfolieret, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, EAN-UCC Composite, Code 128B, Code 128C, Code 128A
RAM installeret (maks.) 16 MB
Teknologi / Model SDRAM
Flashhukommelse 8 MB
Type Kortlæser
Understøttede flashhukommelseskort CompactFlash Card
Medietype Etiketter, endeløse ark, listepapir, lagerkort, billetter
Maks. mediestørrelse Rulle (11,8 cm)
Max. mediestørelse (brugerdefineret) 118 mm
Mediestørrelser Rulle (2,5 - 11,8 cm)
Maks. udskrivningsbredde 104 mm
Maks. udskrivningslængde 1520 mm
Maksimale ydrediameter på rulle 213 mm
Kernediameter på rulle 76 mm, 38 mm
Mediefremføringer 1 x manual - 1 rulle - Rulle (11,8 cm)
Netværk Udskriftsserver
Dataforbindelsesprotokol IEEE 802.11b, IEEE 802.11g
Netværks/overføselsprotokol TCP/IP, UDP/IP, ICMP/IP, LPR/LPD
Protokol til fjernadministration SNMP 2, SNMP, HTTP
Tilslutninger 1 x USB - 4 pin USB Type B ¦ 1 x RS-232 - 9-pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45
Medfølgende ledninger 1 x USB-kabel
Med forbrugsartikler 1 x bånd
Overensstemmelsesstandarder UL, cUL, NOM, FCC, RoHS
Strømenhed Strømforsyning - intern
Nødvendig spænding AC 120/230 V
Nødvendig frekvens 50/60 Hz
Med software Drivers & Utilities, Intermec LabelShop
Min. driftstemperatur 5 °C
Maks. driftstemperatur 40 °C
Fugtighedsgrad ved brug 20 - 85%
Bredde 27.3 cm
Dybde 45.3 cm
Højde 27 cm
Vægt 13 kg

The EasyCoder PD42 is a dependable and versatile printer suitable for medium duty applications in manufacturing, transportation and warehousing environments. With all-metal chassis and covers, proven printing mechanics and powerful electronics, it provides the sturdiness and performance your business depends on.
The EasyCoder PD42 is the first Intermec printer to feature a monochrome, graphical display, which allows users to set up, configure and fine tune printing parameters without having to send commands through the host, saving time. The display working in concert with the status lights provides the user specific feedback if the printer is in an off-line state.
The ability to use any Intermec printer language and emulate other printer protocols makes the EasyCoder PD42 both fully compatible with other Intermec equipment and a cost-effective "drop-in" printer replacement in almost any non-Intermec firmware environment.
Using Fingerprint programming language, the EasyCoder PD42 can change with the application. There's no need to replace the printer when you upgrade your software environment - the printer will adapt. The EasyCoder PD42 keeps your options open and protects your investment.
The EasyCoder PD42 can print demanding crisp variable-data labels continuously at 150 mm/s (6 ips). It takes industry standard 200-mm (8-in) rolls of labels and 450 m (18 000 in) of ribbon, reducing downtime for loading media to a minimum.
The printer accepts a wide range of paper types in different thicknesses, as well as both ink-in and ink-out ribbon. In addition the EasyCoder PD42 offers many Smart Printing features normally found only in high-performance printers. By adding Intermec's LabelShop Pro and XMLLabel , the EasyCoder PD42 will be fully provisioned for XML printing environments.
Support for Unicode fonts and Intermec Ready-to-Work indicator are standard - all at an affordable and competitive price. Networking is an increasingly important user requirement but still a rare feature in this printer class. The EasyCoder PD42 offers EasyLAN high-speed, multi-channel Ethernet as a standard choice.
An open and accessible design makes media loading quick and easy, and the print head can easily be replaced without using any tools.
