| Produktbeskrivelse
|

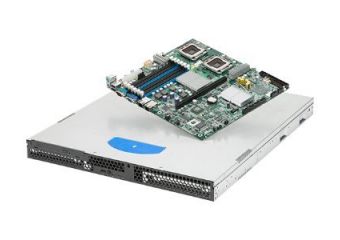

Intel Server System SR1530HCLSR - rack-monterbar - uden CPU - 0 GB - ingen HDD
|
| Type
|
Server - rack-monterbar
|
| Højde (rackenheder)
|
1U
|
| Serverskalerbarhed
|
2-vejs
|
| Processor
|
Uden CPU
|
| Processor-socket
|
LGA771 sokkel
|
| RAM
|
0 GB (installeret) / 12 GB (maks.) - DDR2 SDRAM - ECC
|
| Controller for lagring
|
SAS (SAS); IDE (ATA-100)
|
| Server-lagringsenheder
|
Hot-swap 3.5"
|
| Harddisk
|
Ingen HDD
|
| Optisk lagring
|
Intet optisk drev
|
| Grafik controller
|
ATI ES1000
|
| Videohukommelse
|
16 MB DDR SDRAM
|
| Netværk
|
GigE
|
| Dimensioner (B x D x H)
|
43 cm x 50.8 cm x 4.3 cm
|
Produktdatablad |
|
| Type |
Server |
| Produktmodel |
Rack-monterbar - 1U |
| Serverskalerbarhed |
2-vejs |
| Antal bays med frontadgang |
1 |
| Antal hot-swap bays |
3 |
| CPU |
Uden CPU |
| Maks. antal CPU'er |
2 |
| Opgraderbarhed af CPU |
Kan opgraderes |
| CPU Socket |
LGA771 sokkel |
| Chipsættype |
Intel 5000V |
| Forreste Bus |
1333 MHz |
| Installeret størrelse |
0 GB / 12 GB (maks.) |
| Teknologi |
DDR2 SDRAM - ECC |
| Model |
FB-DIMM 240-pin |
| Holdere |
6 (Total) / 6 (ubrugt) |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Memory Mirroring, Fuldt bufferet |
| Opgraderingsregel |
2 moduler ad gangen |
| Type |
Ingen HDD |
| Type |
1 x SAS - integreret |
| Controller-grænsefladetype |
SAS |
| Antal kanaler |
4 |
| RAID-niveau |
RAID 0, RAID 1, RAID 10 |
| Type |
1 x IDE - integreret |
| Controller-grænsefladetype |
ATA-100 |
| Type |
Intet optisk drev |
| Monitortype |
Ingen. |
| Type |
Integreret |
| Grafik-processor |
ATI ES1000 |
| Videohukommelse |
16 MB DDR SDRAM |
| Video-interfaces |
VGA |
| Type |
Integreret |
| Ethernet Ports |
2 x Gigabit Ethernet |
| Dataforbindelsesprotokol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Protokol til fjernadministration |
IPMI 2.0 |
| Båse |
3 (total) / 3 (fri) x hot-swap 3.5" ¦ 1 (total) / 1 (fri) x ekstern 5,25" Slim Line |
| Holdere |
2 (total) / 2 (fri) x CPU ¦ 6 (total) / 6 (fri) x FB-DIMM 240-pins ¦ 1 (total) / 1 (fri) x PCIe x8 - lav profil ¦ 1 (total) / 1 (fri) x PCI-X / 133 MHz - fuld højde ¦ 1 (total) / 0 (fri) x Intel Adaptive Slot |
| Interface |
2 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 tastatur ¦ 1 x PS/2 mus ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 1 x seriel |
| Medfølgende ledninger |
Seriel ATA kabel (2 styk) ¦ IDE-kabel |
| Enhedstype |
Strømforsyning |
| Antal installeret |
1 |
| Strømforsyning |
400 Watt |
| Strømfaktorkorrektion |
Ja |
| OS-certificeret |
Microsoft Windows 2000 Advanced Server, SUSE Linux Enterprise Server, Microsoft Windows Server 2003 Enterprise Edition, Novell NetWare 6.5, Red Hat Enterprise Linux 4 |
| Bredde |
43 cm |
| Dybde |
50.8 cm |
| Højde |
4.3 cm |
| Min. driftstemperatur |
10 °C |
| Maks. driftstemperatur |
35 °C |
| Fugtighedsgrad ved brug |
0 - 95% |
This is Intel's latest generation of enterprise-level, rack optimized value system level solutions where processing power, reliable memory infrastructure, and redundant networking are required elements for entry level server infrastructures. With flexible storage solutions supporting up to two 3.5" SATA drives, as well as support optional DVD or CD drives, this integrated system is ideal for space-constrained environments such as web farms, clusters and appliance designs that can take advantage of this unique shorter chassis length.
