| Produktbeskrivelse
|

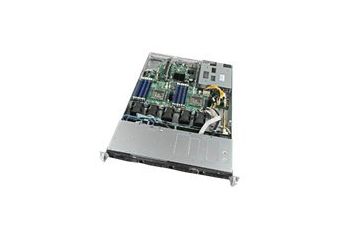

Intel Server System R1304BB4DC - rack-monterbar - uden CPU - 0 GB - ingen HDD
|
| Type
|
Server - rack-monterbar
|
| Højde (rackenheder)
|
1U
|
| Serverskalerbarhed
|
2-vejs
|
| Processor
|
Uden CPU
|
| Processor-socket
|
LGA1356 sokkel
|
| RAM
|
0 GB (installeret) / 384 GB (maks.) - DDR3 SDRAM - ECC
|
| Controller for lagring
|
RAID (SATA 6Gb/s); RAID (SATA 3Gb/s)
|
| Harddisk
|
Ingen HDD
|
| Optisk lagring
|
Intet optisk drev
|
| Grafik controller
|
ServerEngines Pilot III
|
| Videohukommelse
|
16 MB
|
| Netværk
|
GigE
|
| Effekt
|
AC 120/230 V (50/60 Hz)
|
| Overskudsspænding
|
Ja
|
| Producentgaranti
|
Begrænset garanti - 3 år
|
Produktdatablad |
|
| Type |
Server |
| Produktmodel |
Rack-monterbar - 1U |
| Serverskalerbarhed |
2-vejs |
| Antal interne bays |
4 |
| Antal bays med frontadgang |
1 |
| CPU |
Uden CPU |
| Maks. antal CPU'er |
2 |
| Opgraderbarhed af CPU |
Kan opgraderes |
| CPU Socket |
LGA1356 sokkel |
| Chipsættype |
Intel C602-A |
| Installeret størrelse |
0 GB / 384 GB (maks.) |
| Teknologi |
DDR3 SDRAM - ECC |
| Model |
DIMM 240-pin |
| Holdere |
12 (Total) / 12 (ubrugt) |
| Egenskaber |
Ikke bufferet, registreret, Load-Reduced DIMM (LRDIMM) |
| Type |
Ingen HDD |
| Type |
1 x RAID - integreret |
| Controller-grænsefladetype |
SATA 6Gb/s |
| Antal kanaler |
2 |
| RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 10 |
| Type |
1 x RAID - integreret |
| Controller-grænsefladetype |
SATA 3Gb/s |
| RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 10 |
| Type |
Intet optisk drev |
| Monitortype |
Ingen. |
| Type |
Integreret |
| Grafik-processor |
ServerEngines Pilot III |
| Videohukommelse |
16 MB |
| Video-interfaces |
VGA |
| Type |
Integreret |
| Ethernet Ports |
4 x Gigabit Ethernet |
| Ethernet Controller |
Intel I350 |
| Dataforbindelsesprotokol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Protokol til fjernadministration |
IPMI 2.0 |
| Båse |
4 (total) / 4 (fri) x intern 3.5" |
| Holdere |
2 (total) / 2 (fri) x CPU ¦ 12 (total) / 12 (fri) x DIMM 240-pins ¦ 6 (total) / 6 (fri) x PCIe 3.0 x8 ¦ 2 (total) / 2 (fri) x PCIe 3.0 x16 ¦ 1 (total) / 1 (fri) x PCIe 2.0 x8 |
| Interface |
1 x VGA ¦ 1 x USB 2.0 ¦ 1 x seriel ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x administration |
| Enhedstype |
Strømforsyning |
| Overskudsspænding |
Ja |
| Skema til overskudsspænding |
1+1 |
| Antal installeret |
2 |
| Maks. antal understøttet |
2 |
| Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
| Strømforsyning |
460 Watt |
| Service & Support |
Begrænset garanti - 3 år |
The Intel Server System R1300BB family was engineered for energy efficient performance. Optimizations include 12 V power input, high efficiency VR components and design as well as 80 Plus Gold certified power supplies and customized fan speed controls to deliver the best available price/performance/watt.
