| Produktbeskrivelse
|

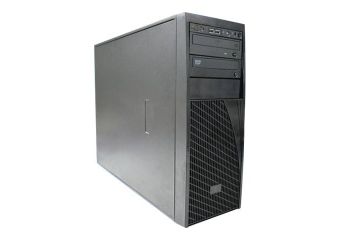

Intel Server Chassis P4308XXMHJC - tower - 4U - SSI EEB
|
| Produkttype
|
Systemkabinet
|
| Model
|
Tower - 4U
|
| Farve
|
Kosmetisk sort
|
| I/O-kontakter
|
2 x USB 2.0
|
| Understøttede motherboards
|
SSI CEB, SSI EEB
|
| Server-lagringsenheder
|
SATA/SAS - hot-swap
|
| Egenskaber, systemkabinet
|
Skrueløse drive bays, dør til frontpanel, Kensington låsesupport
|
| Strømenhed
|
Strømforsyning - hot-plug
|
| Overskudsspænding
|
Ja
|
| Dimensioner (B x D x H)
|
17.3 cm x 61.2 cm x 43.8 cm
|
| Miljømæssige standarder
|
ENERGY STAR kvalificeret
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Model |
Tower - 4U |
| Max størrelse på bundkort |
SSI EEB |
| Understøttede motherboards |
SSI CEB, SSI EEB |
| Antal bays med frontadgang |
3 |
| Antal hot-swap bays |
8 |
| Server Ombyttelig Drev Grænseflade |
SATA/SAS |
| Farve |
Kosmetisk sort |
| Kølesystem |
Intern: 80 x 80 x 38 mm ventilator x 5 / hot-swap |
| Egenskaber, systemkabinet |
Skrueløse drive bays, dør til frontpanel, Kensington låsesupport |
| Udvidelses-båse |
3 (total) / 3 (fri) x frontadgang - 5.25" x 1/4H ¦ 8 (total) / 8 (fri) x hot-swap - 3.5" |
| Ekspansionsåbninger |
6 x fuld længde, fuld højde |
| Interface |
2 x USB 2.0 |
| Strømenhed |
Strømforsyning - hot-plug |
| Overskudsspænding |
Ja |
| Skema til overskudsspænding |
1+1 |
| Antal installeret |
2 |
| Maks. antal understøttet |
2 |
| Strømkapacitet (enkel enhed) |
1.2 kW |
| 80 PLUS certificering |
80 PLUS Platinum |
| Bredde |
17.3 cm |
| Dybde |
61.2 cm |
| Højde |
43.8 cm |
| ENERGY STAR-certificeret |
Ja |
| Service & Support |
Begrænset garanti - 3 år |
| Min. driftstemperatur |
10 °C |
| Maks. driftstemperatur |
35 °C |
Flexibility, efficiency, and quality make the Intel Server Chassis P4300M the natural choice for integrating Intel Server Boards or other standard CEB/EEB motherboards. The Intel Server Chassis P4300M features support for a family of high efficiency and redundant-capable power supplies and provides the perfect balance of performance with low cost of ownership. Standard cooling includes two non-redundant 120 mm fans in front with one 80 mm exhaust fan in the rear to keep even the highest performing system cool.
