| Produktbeskrivelse
|

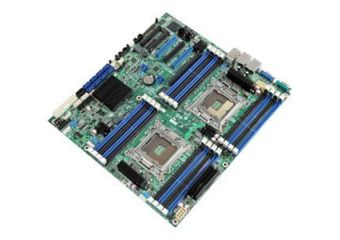

Intel Server Board S2600CP4 - bundkort - SSI EEB - LGA2011 sokkel - C600-A
|
| Produkttype
|
Bundkort - SSI EEB
|
| Chipsættype
|
Intel C600-A
|
| Processor-socket
|
2 x LGA2011 sokkel
|
| Kompatible processorer
|
Xeon E5-2600 series
|
| Max RAM-størrelse
|
500 GB
|
| RAM understøttet
|
16 DIMM åbninger - DDR3, ECC, registreret, ikke bufferet
|
| Lagringsporte
|
2 x SATA-600 (RAID), 4 x SATA-300 (RAID)
|
| USB / FireWire porte
|
5 x USB 2.0 + (2 x USB 2.0 via samlekasser)
|
| Grafik
|
Matrox G200
|
| LAN
|
4 x Gigabit Ethernet
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Produkttype |
Bundkort - SSI EEB |
| Chipsættype |
Intel C600-A |
| Processor-socket |
LGA2011 sokkel |
| Max antal processorer |
2 |
| Kompatible processorer |
Xeon E5-2600 series |
| Maks. størrelse |
500 GB |
| Teknologi |
DDR3 |
| Bus Clock |
1333 MHz, 1066 MHz, 800 MHz |
| Understøttet RAM-integritetskon |
ECC |
| Registreret eller buffer |
Registreret, ikke bufferet |
| Grafik controller |
Matrox G200 |
| Netværk controller |
Intel I350 |
| Netværks interfaces |
4 x Gigabit Ethernet |
| Ekspansionsåbninger |
2 x CPU ¦ 16 x DIMM 240-pins (1.5 V/ 1.35 V) ¦ 1 x PCIe 3.0 x16 ¦ 5 x PCIe 3.0 x8 |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - 2 enheder - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-300 -stikforbindelser: 8 x 7-pin Seriel ATA - 4 enheder - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID-egenskaber |
Software RAID 0/ 1 / 10 / 5 |
| Interface |
4 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x seriel ¦ 1 x USB ¦ 1 x VGA |
| Interne interfaces |
1 x USB 2.0 - Type A ¦ 2 x USB 2.0 ¦ 1 x seriel |
| BIOS-type (Basic Input/Output System) |
Intel |
| BIOS-egenskaber |
IPMI-understøttet |
| Hardware egenskaber |
Trusted Platform Module (TPM), Intel Fast Memory Access Technology |
| Udstyr inkluderet |
I/O- bagvæg |
| Med software |
Drivers & Utilities |
| Bredde |
30.5 cm |
| Dybde |
33 cm |
| Service & Support |
Begrænset garanti - 3 år |
The Intel server board S2600CP4 is a mainstream server board supporting up to two Intel Xeon processors. This board is standard SSI EEB designed for the small/medium business and embedded markets.
