| Produktbeskrivelse
|

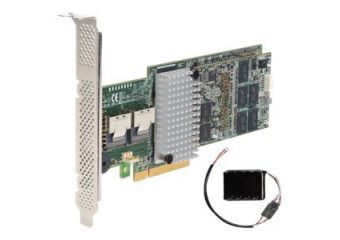

Intel RAID Controller RS25AB080 - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 2.0 x8
|
| Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort - lavprofil
|
| Bustype
|
PCIe 2.0 x8
|
| Interface
|
SATA 6Gb/s / SAS 6Gb/s
|
| Dataoverførselshastighed
|
6 Gbit/s
|
| Buffer størrelse
|
1 GB
|
| Understøttede enheder
|
Harddisk, diskarray (RAID)
|
| Antal kanaler
|
8
|
| Maks. antal lagerenheder
|
128
|
| RAID-niveau
|
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
|
| Systemkrav
|
SUSE Linux Enterprise Server, Microsoft Windows Server 2003, Red Hat Enterprise Linux, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008, VMware ESX Server 4.0
|
Produktdatablad |
|
| Enhedstype |
Styreenhed til lagring (RAID) - indstikskort - lavprofil |
| Host Bus |
PCIe 2.0 x8 |
| Interface |
SATA 6Gb/s / SAS 6Gb/s |
| Dataoverførselshastighed |
6 Gbit/s |
| Buffer størrelse |
1 GB |
| Understøttede enheder |
Harddisk, diskarray (RAID) |
| Antal kanaler |
8 |
| Maks. antal lagerenheder |
128 |
| RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Processor |
LSI LSISAS2208 800 MHz |
| Interface |
2 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (intern) |
| Kompatible åbninger |
1 x PCI Express 2.0 x8 - low-profile |
| Udstyr inkluderet |
Beslag i fuld højde, Maintenance Free Backup Unit (MFBU) |
| Med software |
Intel RAID Flash Utilities, Intel RAID Command Line Tool, Intel RAID Web Console 2 |
| OS nødvendig |
SUSE Linux Enterprise Server, Microsoft Windows Server 2003, Red Hat Enterprise Linux, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008, VMware ESX Server 4.0 |
The Intel RAID Controller RS25AB080, powered by LSI MegaRAID technology, offers exceptional performance, scalability, and configuration flexibility making it the perfect choice for l/O and throughput-intensive applications. The Intel RAID Controller RS25AB080 delivers eight internal ports, two 800 MHz processor cores, and a 72-bit DDR3 interface that drives 1 GB cache memory and comes with a Maintenance Free Backup Unit that utilizes NAND flash memory and a super-capacitor to help protect data stored in the controller cache. This technology helps eliminate the hardware maintenance associated with LiON batteries, lower total cost of ownership over the life of the adapter, and more environmentally friendly cache protection.
