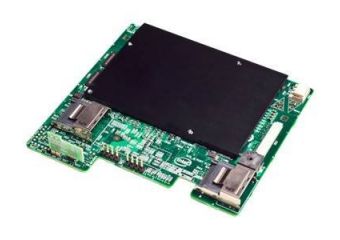

Intel Integrated Server RAID Module RMS2MH080

Intel Integrated Server RAID Module RMS2MH080 styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 2.0 x8

Producent Intel
Produkt nr. AXXRMS2MH080
EAN 0735858215619
Varenummer 178635
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 05-09-2017
Mere info
4.243,- DKK
Produktbeskrivelse Intel Integrated Server RAID Module RMS2MH080 - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 2.0 x8
Enhedstype Styreenhed til lagring (RAID)
Bustype PCIe 2.0 x8
Interface SATA 6Gb/s / SAS 6Gb/s
Dataoverførselshastighed 600 MBps
Buffer størrelse 512 MB
Understøttede enheder Diskarray (RAID)
Maks. antal lagerenheder 32
RAID-niveau RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Designet for Server Board S5500WB, S5520UR; Server System SR1625UR, SR1690WB, SR1695WB, SR2600UR, SR2612UR, SR2625UR
Enhedstype Styreenhed til lagring (RAID)
Host Bus PCIe 2.0 x8
Interface SATA 6Gb/s / SAS 6Gb/s
Dataoverførselshastighed 600 MBps
Buffer størrelse 512 MB
Understøttede enheder Diskarray (RAID)
Maks. antal lagerenheder 32
RAID-niveau RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Processor LSI LSISAS2108 800 MHz
Interface 2 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane SAS (SFF-8087) (intern)
Maks. driftstemperatur 50 °C
Designet for Intel Server Board S5500WB, S5520UR ¦ Intel Server System SR1625UR, SR1690WB, SR1695WB, SR2600UR, SR2612UR, SR2625UR

The Intel Integrated Server RAID Module RMS2MH080, powered by LSI MegaRAID technology, offers intelligent RAID protection for servers using SAS or SATA hard drives. Designed specifically for selected Intel server boards, this SAS/SATA RAID module communicates with the host system through a custom board-to-board PCIe 2.0 interface. With the popularity of rack-dense 1U and 2U servers increasing, this design allows system builders to easily implement a robust RAID solution without sacrificing a valuable riser-card slot or using a chassis with low-profile add-in card cut-outs.
