| Produktbeskrivelse
|

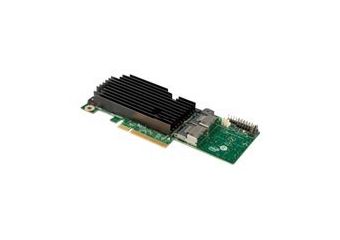

Intel Integrated RAID Module RMS25KB080 - styreenhed til lagring (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x8
|
| Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort - lavprofil
|
| Bustype
|
PCIe 3.0 x8
|
| Interface
|
SATA 6Gb/s / SAS 6Gb/s
|
| Dataoverførselshastighed
|
6 Gbit/s
|
| Understøttede enheder
|
Harddisk, diskarray (RAID)
|
| Antal kanaler
|
8
|
| Maks. antal lagerenheder
|
128
|
| RAID-niveau
|
RAID 0, RAID 1, RAID 10, RAID 1E
|
| Systemkrav
|
Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, VMware ESX Server 4.0
|
| Designet for
|
Server System P4208CP4MHGC
|
Produktdatablad |
|
| Enhedstype |
Styreenhed til lagring (RAID) - indstikskort - lavprofil |
| Host Bus |
PCIe 3.0 x8 |
| Interface |
SATA 6Gb/s / SAS 6Gb/s |
| Dataoverførselshastighed |
6 Gbit/s |
| Understøttede enheder |
Harddisk, diskarray (RAID) |
| Antal kanaler |
8 |
| Maks. antal lagerenheder |
128 |
| RAID-niveau |
RAID 0, RAID 1, RAID 10, RAID 1E |
| Processor |
LSI LSISAS2308 800 MHz |
| Interface |
8 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (intern) |
| Kompatible åbninger |
1 x PCI Express 3.0 x8 |
| Udstyr inkluderet |
Simpelt beslag, beslag i fuld højde |
| Egenskaber |
LED indikator, opgradérbart firmware |
| MTBF (forventet tid mellem fejl) |
300,000 timer |
| OS nødvendig |
Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, VMware ESX Server 4.0 |
| Fugtighedsgrad ved brug |
20 - 80 % (ikke-kondenserende) |
| Designet for |
Intel Server System P4208CP4MHGC |
Ideal for servers and workstations needing high-speed data transfer within a small hardware footprint, the Intel RAID Module RMS25KB080 delivers a 1 U capable design with high throughput for internal storage applications. This RAID controller provides SAS capability that allows compatibility with 6 Gb/s and 3 Gb/s SAS and SATA hard drives, and SAS expander devices.
The RMS25KB080 utilizes the embedded CPU in the LSI 2308 ASIC to perform RAID 0, 1, and 1E/10 operations. With the reduction in RAID overhead, the RMS25KB080 offers superior internal READ/WRITE performance.
