| Produktbeskrivelse
|

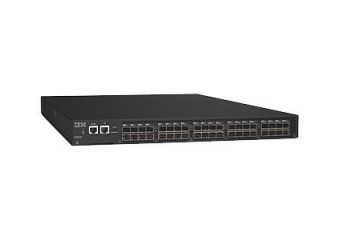

IBM System Storage SAN40B-4 - switch - 24 porte
|
| Enhedstype
|
Switch - 24 porte
|
| Pakningstype
|
1U
|
| Undertype
|
Fibre Channel
|
| Porte
|
24 x 8Gb Fibre Channel
|
| Egenskaber
|
Auto-sensing per device, Porte på forlangende
|
| Effekt
|
AC 120/230 V (50/60 Hz)
|
| Overskudsspænding
|
Ja
|
| Dimensioner (B x D x H)
|
42.9 cm x 61 cm x 4.3 cm
|
| Vægt
|
9.3 kg
|
| Producentgaranti
|
1 års garanti
|
Produktdatablad |
|
| Enhedstype |
Switch - 24 porte |
| Pakningstype |
Desktop 1U |
| Undertype |
Fibre Channel |
| Porte |
24 x 8Gb Fibre Channel |
| Fiberkanal |
FC-IP, FC-PH, FC-SW-3 |
| Egenskaber |
Auto-sensing per device, Porte på forlangende |
| Processor |
1 x IBM PowerPC 440EPx: 667 MHz |
| RAM |
512 MB SDRAM |
| Flashhukommelse |
1 GB |
| Indbygget udstyr |
LED-panel |
| Interface |
1 x Ethernet - RJ-45 administration ¦ 1 x USB ¦ 1 x RS-232 - RJ-45 administration ¦ 40 x SFP (mini-GBIC) |
| Strømenhed |
Intern strømforsyning - hot-plug |
| Antal installeret |
2 |
| Maks. antal understøttet |
2 |
| Overskudsspænding |
Ja |
| Nødvendig spænding |
AC 120/230 V (50/60 Hz) |
| Strømforbrug ved drift |
91 Watt |
| Overensstemmelsesstandarder |
TUV GS, C-Tick, GOST, NEMKO, CB, CSA C22.2 No. 60950 Third Edition |
| Bredde |
42.9 cm |
| Dybde |
61 cm |
| Højde |
4.3 cm |
| Vægt |
9.3 kg |
| Service & Support |
Begrænset garanti - 1 år |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
10 - 85% |
The IBM System Storage SAN40B-4 SAN fabric switch provides 24, 32 or 40 active ports and is designed for high performance with 8 Gbps link speeds and backward compatibility to support links running at 4, 2 and 1 Gbps link speeds. High availability features make it suitable for use as a core switch in midrange environments or as an edge-switch in enterprise environments where a wide range of SAN infrastructure simplification and business continuity configurations are possible.
