| Produktbeskrivelse
|

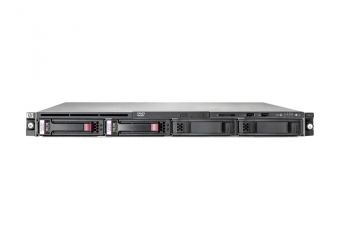

HPE StorageWorks Network Storage Gateway X3400 G2 - NAS-server
|
| Enhedstype
|
NAS-server
|
| Vært Tilslutning
|
Gigabit Ethernet
|
| Pakningstype
|
Rackversion - 1U
|
| Dimensioner (B x D x H)
|
44.8 cm x 68.2 cm x 4.3 cm
|
| Vægt
|
15.2 kg ()
|
| Processor
|
1 x Intel Xeon E5503 2 GHz (Dual-Core)
|
| Controller for lagring
|
RAID PCIe 2.0 x8 SATA 3Gb/s / SAS 6Gb/s RAID 0, 1, 5, 10, 50
|
| Harddisk
|
2 x 300 GB SAS 6Gb/s
|
| Optisk lagring
|
1 x DVD-RW
|
| Netværk
|
Netværksadapter - integreret - 10Mb LAN, 100Mb LAN, GigE
|
| RAM
|
4 GB
|
| Overskudsspænding
|
Valgfri
|
| Operativsystem til lagring
|
Microsoft Windows Storage Server 2008 Enterprise x64 Edition
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Enhedstype |
NAS-server |
| Vært Tilslutning |
Gigabit Ethernet |
| Pakningstype |
Rackversion - 1U |
| Totale lagringskapacitet |
0 GB |
| Bredde |
44.8 cm |
| Dybde |
68.2 cm |
| Højde |
4.3 cm |
| Vægt |
15.2 kg () |
| Antal installerede processorer |
1 x Intel Xeon E5503 2 GHz |
| Antal kerner |
Dual-Core |
| Maks. antal understøttet |
1 |
| RAM |
4 GB (installeret) / 72 GB (understøttet) |
| Type |
RAID - intern |
| Bustype |
PCI Express 2.0 x8 |
| Interfacetype |
SATA 3Gb/s / SAS 6Gb/s |
| RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Type |
HDD - hot-swap - 3.5" x 1/3H |
| Kapacitet |
2 x 300 GB |
| Grænsefladetype |
SAS 6Gb/s |
| Dataoverførselshastighed |
600 MBps |
| Spindelhastighed |
15000 rpm |
| Type |
1 x DVD-RW |
| Type |
Netværksadapter - integreret |
| Dataforbindelsesprotokol |
10Mb LAN, 100Mb LAN, GigE |
| Netværks/overføselsprotokol |
TCP/IP |
| Netværkservicekompatibilitet |
Microsoft CIFS, Network File System (NFS), FTP, Server Message Block (SMB), HTTP |
| Udvidelses-båse |
4 (total) / 2 (fri) x hot-swap - 3.5" 1/3H |
| Ekspansionsåbninger |
9 (total) / 7 (fri) ¦ 1 (total) / 1 (fri) x PCI Express x16 ¦ 1 (total) / 0 (fri) x PCI Express x8 |
| Interface |
2 x Ethernet 1000Base-T - RJ-45 ¦ 6 x USB 2.0 - Type A ¦ 1 x PS/2 mus ¦ 1 x PS/2 tastatur ¦ 1 x seriel ¦ 1 x VGA - HD-15 |
| Strømenhed |
Intern strømforsyning |
| Antal installeret |
1 |
| Maks. antal understøttet |
2 |
| Overskudsspænding |
Valgfri |
| Skema til overskudsspænding |
1+1 (med valgfrit netaggregat) |
| Strømforsyning |
500 Watt |
| Operativsystem til lagring |
Microsoft Windows Storage Server 2008 Enterprise x64 Edition |
| Service & Support |
Begrænset garanti - reservedele og arbejdskraft - 3 år - on-site |
| Min. driftstemperatur |
10 °C |
| Maks. driftstemperatur |
35 °C |
| Fugtighedsgrad ved brug |
10 - 90% |
HP StorageWorks X3000 G2 Network Storage Systems boost the value of your array or SAN by adding Windows-powered IP-based gateway services to it. You'll spend less time and effort on maintenance and deliver a better return-on-investment for your array/SAN when you consolidate to a single, unified storage pool that can serve files to your clients and blocks to your servers via multiple protocols. Industry-standards protect your investment by providing compatibility with your network and applications, and a Microsoft Cluster Server (MSCS) license is included to provide high availability and reduce downtime.
HP StorageWorks X3000 G2 Network Storage Systems are enhanced Windows-powered gateway and shared storage solutions for your medium business, workgroup, or datacenter environment. They connect via Ethernet and add file, print, iSCSI, and management services to an array or SAN, or they can be used in conjunction with array storage to build an affordable and highly-available unified storage solution. Since HP X3000 G2 Network Storage Systems are Windows-based, integration into your Windows environment is easy, your antivirus and backup applications run right on the box, and management has a familiar look and feel.
