| Produktbeskrivelse
|

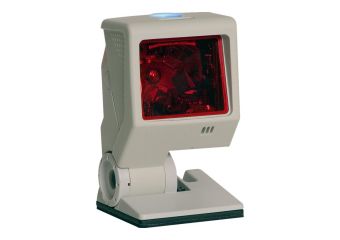

Honeywell QuantumT 3580 - stregkodescanner
|
| Type
|
Stregkodescanner - desktopmodel - IBM 46xx, RS-485 - afkodet
|
| Farve
|
Lysegrå
|
| Min. linjebredde
|
5 mil
|
| Bredde af skanningsområde
|
19 mm - 298 mm
|
| Scanningskomponenttype
|
Synlig laserdiode
|
| Scanningshastighed
|
1650 linie/sek
|
| Forbindelsesteknologi
|
Kabling
|
| Dimensioner (B x D x H)
|
6.7 cm x 6.6 cm x 10.8 cm
|
| Vægt
|
170 g
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Type |
Stregkodescanner - desktopmodel |
| Farve |
Lysegrå |
| Grænsefladetype |
IBM 46xx, RS-485 |
| Min. linjebredde |
5 mil |
| Bredde af skanningsområde |
19 mm - 298 mm |
| Scanningskomponenttype |
Synlig laserdiode |
| Lyskilde bølgelængde |
640-660 nm |
| Scanningsmodus |
Enfaset |
| Scanningshastighed |
1650 linie/sek |
| Skæv vridning (grader) |
60 |
| Pitch (grader) |
60 |
| Print Contrast Signal (PCS) |
35% |
| Med afkodning |
GS1 DataBar |
| TTL-afkodning |
Afkodet |
| Forbindelsesteknologi |
Kabling |
| OK meddelelse |
Bipper, LED-indikator |
| Egenskaber |
Reduced Space Symbology (RSS), CodeGate, robust, firmware opgraderbar |
| Interface |
1 x RS-485 |
| Udstyr inkluderet |
Stativ |
| Overensstemmelsesstandarder |
CISPR 24, EN55022, ICES-003, EN55024, CISPR 22, FCC Part 15, RoHS, WEEE, Sunrise 2005, JavaPOS, OPOS, IEC 60825-1, cULus, EN 60825-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition |
| Strømforbrug ved drift |
1.4 Watt |
| Elektrisk strøm påkrævet |
230 mA (standby), 275 mA (drift) |
| Bredde |
6.7 cm |
| Dybde |
6.6 cm |
| Højde |
10.8 cm |
| Vægt |
170 g |
| Service & Support |
Begrænset garanti - 3 år |
| Min. driftstemperatur |
-20 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
| Specifikation ved fald |
1.5 m |
Honeywell's QuantumT 3580 omnidirectional hands-free scanner provides retailers with industry-leading scan performance and single-line scanning in a compact form factor. The CodeGate technology saves time and reduces unwanted scans by offering a single-line mode for scanning menu-style codes. The QuantumT has a small footprint and numerous stand options to minimize required counter space and increase available room for merchandise and advertisement displays. The omnidirectional scanner is also available with multiple sleep modes to reduce power consumption, increase battery life and lower operational costs.
