| Produktbeskrivelse
|

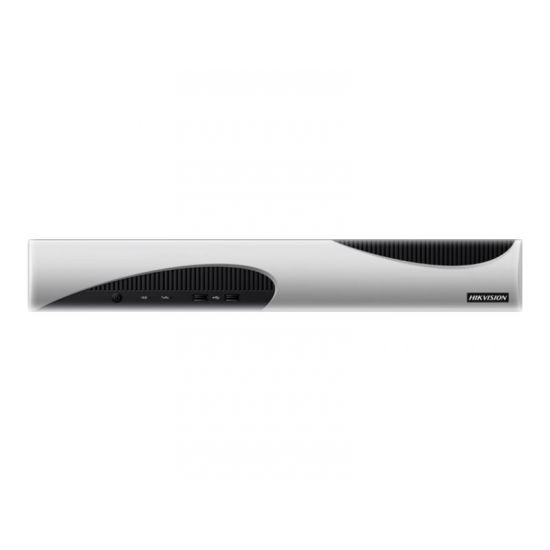

Hikvision DS-WSELI-T2 - rack-monterbar - Celeron J3455 1.5 GHz - 4 GB - SSD 32 GB
|
| Type
|
Arbejdsstation - rack-monterbar
|
| Højde (rackenheder)
|
1U
|
| Processor
|
1 x Intel Celeron J3455 / 1.5 GHz (2.3 GHz) (Quad-Core)
|
| Cachehukommelse
|
2 MB
|
| Cache pr. processor
|
2 MB
|
| RAM
|
4 GB DDR3L SDRAM
|
| Controller for lagring
|
SATA
|
| Harddisk
|
SSD 32 GB - SATA - mSATA
|
| Grafik controller
|
Intel HD Graphics 500
|
| Netværk
|
GigE
|
| Effekt
|
AC 100 - 240 V (50 - 60 Hz)
|
| Med OS
|
Ubuntu 16.04
|
| Dimensioner (B x D x H)
|
44.5 cm x 29 cm x 4.5 cm
|
| Vægt
|
3 kg
|
Produktdatablad |
|
| Type |
Arbejdsstation |
| Produktmodel |
Rack-monterbar - 1U |
| CPU |
Intel Celeron J3455 |
| Clock-frekvens |
1.5 GHz |
| Max Turbo Speed |
2.3 GHz |
| Antal kerner |
Quad-Core |
| Antal CPU'er |
1 |
| Maks. antal CPU'er |
1 |
| Installeret størrelse |
2 MB |
| Cache pr. processor |
2 MB |
| Installeret størrelse |
4 GB |
| Teknologi |
DDR3L SDRAM |
| Type |
SSD - mSATA |
| Kapacitet |
1 x 32 GB |
| Grænsefladetype |
SATA |
| Type |
SATA |
| Monitortype |
Ingen. |
| Grafik-processor |
Intel HD Graphics 500 |
| Video-interfaces |
VGA, HDMI |
| Ethernet Ports |
2 x Gigabit Ethernet |
| Dataforbindelsesprotokol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Interface |
2 x HDMI ¦ 2 x seriel ¦ 4 x USB 3.0 ¦ 2 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x audio linje-ind ¦ 1 x audio linje-ud ¦ 1 x VGA ¦ 2 x SATA |
| Nødvendig spænding |
AC 100 - 240 V (50 - 60 Hz) |
| Strømforbrug ved drift |
150 Watt |
| Med OS |
Ubuntu 16.04 |
| Bredde |
44.5 cm |
| Dybde |
29 cm |
| Højde |
4.5 cm |
| Vægt |
3 kg |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
45 °C |
| Fugtighedsgrad ved brug |
10 - 90 % (ikke-kondenserende) |
Embedded with the Linux operating system, the DS-WSELI-T/P Series workstation provides reliable performance in CPU processing, decoding, and storage capability. It allows the integration of the Hikvision hardware and the third-party VMS software to maintain a flexible one-stop solution.
The DS-WSELI-T/P workstation can be applied to the small-scale chain management with convenient remote centralized storage.
