| Produktbeskrivelse
|

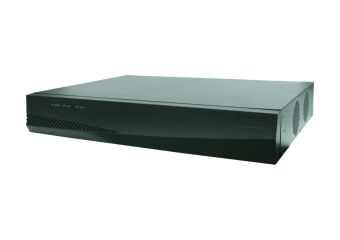

Hikvision DS-6404HDI-T - video dekoder - 4 kanaler
|
| Enhedstype
|
Video dekoder - 4 kanaler - netværket - rackversion - 1.5U
|
| Komprimerings Format
|
MPEG-4, G.711, MPEG-2, H.264, AAC
|
| Billed Opløsning
|
1600x1200, 1280x720, 1920x1080, 1024x768, 1280x1024
|
| Spænding
|
100 - 240 V
|
| Dimensioner (B x D x H)
|
44 cm x 34 cm x 7 cm
|
| Vægt
|
5.2 kg
|
Produktdatablad |
|
| Enhedstype |
Video dekoder - rackversion - 1.5U |
| Video Kanaler |
4 |
| Audio Kanaler |
4 |
| Billed Opløsning |
1600x1200, 1280x720, 1920x1080, 1024x768, 1280x1024 |
| Komprimerings Format |
MPEG-4, G.711, MPEG-2, H.264, AAC |
| Netværket |
Ja |
| DDNS Support |
Ja |
| Netværks Grænseflade |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Video Output Porte |
VGA x 4, HDMI x 4 |
| Audio Input Porte |
Mini-telefon 3,5 mm x 1 |
| Audio Output Porte |
Mini-telefon 3,5 mm x 1 |
| Alarm Porte |
Alarm input x 4, alarm output x 2 |
| Netværk Port |
10/100/1000Base-T |
| Andre Porte |
Serial RS-232 x 1, serial RS-485 x 1 |
| Spænding |
100 - 240 V |
| Strøm Forbrug |
70 Watt |
| Bredde |
44 cm |
| Dybde |
34 cm |
| Højde |
7 cm |
| Vægt |
5.2 kg |
| Min. driftstemperatur |
-10 °C |
| Maks. driftstemperatur |
55 °C |
| Fugtighedsgrad ved brug |
10 - 90% |
Designed for the high-definition video monitoring system, DS-6400HDI-T series HD video/audio decoder is developed on the basis of TI platform, Linux operating system and Netra processor, ensuring high reliability and stability of system running.
The DS-6400HDI-T series HD video/audio decoder is capable of decoding video at 1080p resolution and outputting decoded video via VGA and HDMI interfaces, and it also supports multiple network protocols and multiple stream transmission mode, thus provides a strong support to the large-scale TVWall decoding.
