| Produktbeskrivelse
|

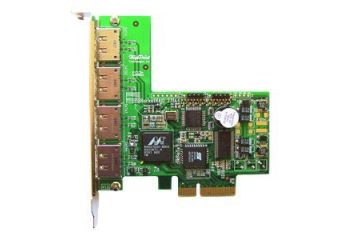

HighPoint RocketRAID 2314 - styreenhed til lagring (RAID) - eSATA 3Gb/s - PCIe x4
|
| Enhedstype
|
Styreenhed til lagring (RAID) - indstikskort
|
| Bustype
|
PCIe x4
|
| Interface
|
eSATA 3Gb/s
|
| Dataoverførselshastighed
|
3 Gbit/s
|
| Understøttede enheder
|
Harddisk, diskarray (RAID)
|
| Antal kanaler
|
4
|
| Maks. antal lagerenheder
|
4
|
| RAID-niveau
|
RAID 0, RAID 1, RAID 5, RAID 10, JBOD
|
| Systemkrav
|
Linux, Microsoft Windows 2000, FreeBSD, Apple MacOS X, Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows Vista, Microsoft Windows Server 2003 x64 Edition
|
| Dimensioner (B x D x H)
|
10.1 cm x 10.6 cm
|
| Producentgaranti
|
1 års garanti
|
Produktdatablad |
|
| Enhedstype |
Styreenhed til lagring (RAID) - indstikskort |
| Host Bus |
PCIe x4 |
| Interface |
eSATA 3Gb/s |
| Dataoverførselshastighed |
3 Gbit/s |
| Understøttede enheder |
Harddisk, diskarray (RAID) |
| Antal kanaler |
4 |
| Maks. antal lagerenheder |
4 |
| RAID-niveau |
RAID 0, RAID 1, RAID 5, RAID 10, JBOD |
| Interface |
4 x eSATA 3Gb/s - eSATA |
| Kompatible åbninger |
1 x PCI Express x4 - fuld højde |
| Medfølgende ledninger |
4 x eSATA-kabel - ekstern |
| MTBF (forventet tid mellem fejl) |
920,585 timer |
| Overensstemmelsesstandarder |
EN55024, EN55022 Class B, FCC Part 15 B, RoHS |
| OS nødvendig |
Linux, Microsoft Windows 2000, FreeBSD, Apple MacOS X, Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows Vista, Microsoft Windows Server 2003 x64 Edition |
| Service & Support |
Begrænset garanti - 1 år |
| Dybde |
10.1 cm |
| Højde |
10.6 cm |
| Min. driftstemperatur |
5 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
20 - 80% |
Initially SATA was designed as an internal or inside-the-box interface technology, bringing improved performance and more features to internal PC or consumer storage. Creative designers quickly realized the innovative interface could reliably be expanded outside the PC, bringing the same performance and features to external storage needs instead of relying on USB or 1394 interfaces.
