Produktdatablad |
|
| Produkttype |

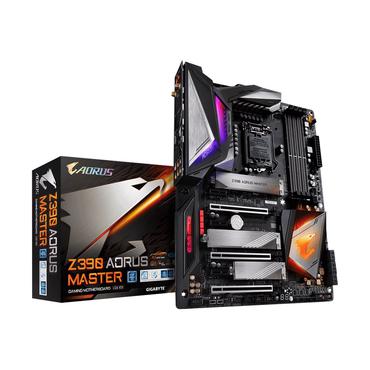

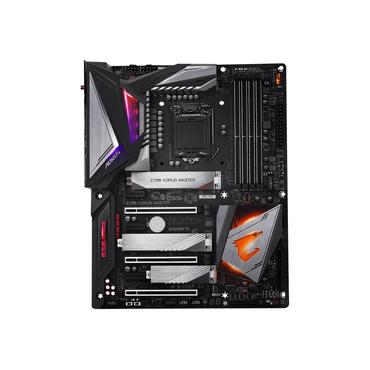

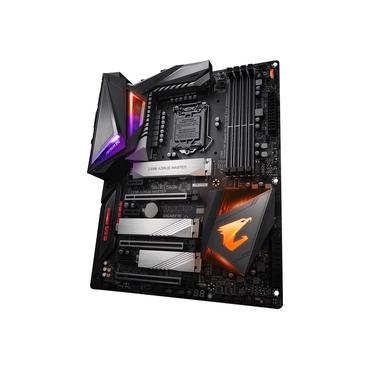

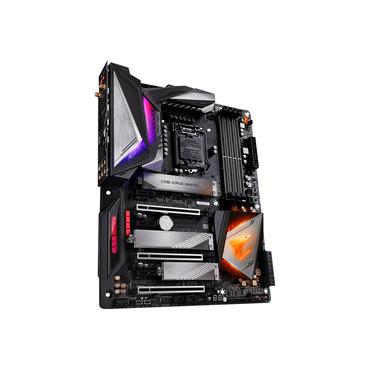

Bundkort - ATX |
| Chipsættype |
Intel Z390 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (understøtter 9th og 8th Generation Intel Core/Pentium Gold/Celeron) |
| Maks. størrelse |
128 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.) |
| Understøttet RAM-integritetskon |
Ikke-ECC, ECC (drift i ikke-ECC tilstand) |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand |
| Maks. allokeret RAM-størrelse |
1 GB |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC1220-VB |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværks interfaces |
Gigabit Ethernet, 802.11a/b/g/n/ac Wave 2, Bluetooth 5.0 |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 (x16 tilstand (x8 tilstand hvis nabo x16 åbning er optaget)) ¦ 1 x PCIe 3.0 x16 (x8-modus) ¦ 1 x PCIe 3.0 x16 (x4 tilstand (x2 tilstand hvis M.2 er optaget)) ¦ 3 x PCIe 3.0 x1 ¦ 1 x M.2 socket (til Intel CNVi trådløst modul) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe -stikforbindelser: 2 x M.2 ¦ PCIe -stikforbindelser: 1 x M.2 |
| Interface |

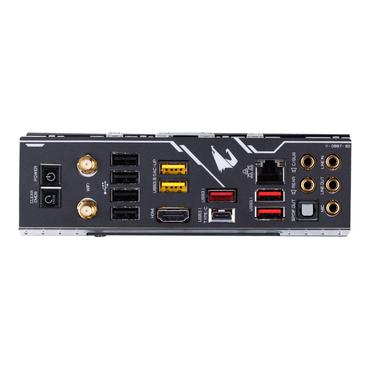

1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 2 x USB 3.1 Gen 1 ¦ 3 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 4 x USB 2.0 |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x SPDIF ud - intern stik ¦ 1 x audio - intern stik ¦ 1 x USB-C Gen2 - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS |
| Hardwareovervågning |
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, Beskyttelse mod CPU overophedning, vandkølings-flowrate |
| Hardware egenskaber |
12 Phase Power Design, AutoGreen, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, On/Off Charge, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, Easy RAID Installer, Ultra Durable Memory Armor, GIGABYTE USB DAC-UP 2, Intel Optane Memory Ready, RGB FUSION, Ultra Durable PCIe Armor, M.2 Thermal Guard, præmonteret I/O-skjold, CEC 2019 Ready, Fins-Array Heatsink & Direct Touch Heatpipe, Solid Pin Power Connectors, ESS 9118 SABRE HiFi DAC, GIGABYTE USB TurboCharger |
| Med software |
Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE 3D OSD, XSplit Gamecaster (1 års licens), XSplit Broadcaster (1 års licens), GIGABYTE Smart Survey |
| Overensstemmelsesstandarder |
Plug and Play |
| Bredde |
30.5 cm |
| Dybde |
24.4 cm |
