| Produktbeskrivelse
|

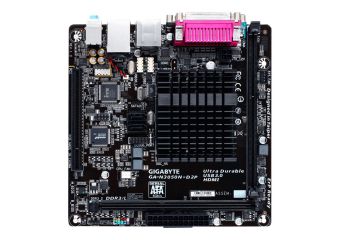

Gigabyte GA-N3050N-D2P - 1.0 - bundkort - mini ITX - Intel Celeron N3050
|
| Produkttype
|
Bundkort - mini ITX
|
| Processor
|
Intel Celeron N3050 / 1.6 GHz (Dual-Core)
|
| Max RAM-størrelse
|
8 GB
|
| RAM understøttet
|
2 DIMM slots - DDR3, DDR3L, ikke-ECC, ikke bufferet
|
| Lagringsporte
|
2 x SATA-600
|
| USB / FireWire porte
|
4 x USB 3.0 + (4 x USB 2.0 via samlekasser)
|
| Grafik
|
Intel HD Graphics
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Gigabit Ethernet
|
Produktdatablad |
|
| Produkttype |
Bundkort - mini ITX |
| Processor |
Intel Celeron N3050 / 1.6 GHz (Dual-Core) |
| Cachehukommelse |
2 MB |
| Maks. størrelse |
8 GB |
| Teknologi |
DDR3, DDR3L |
| Bus Clock |
1600 MHz, 1066 MHz |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur |
| Grafik controller |
Intel HD Graphics |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC887 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
2 x DIMM 240-pins ¦ 1 x PCI |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - 2 enheder |
| Interface |
1 x HDMI ¦ 1 x VGA ¦ 1 x seriel ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x parallel ¦ 4 x USB 3.0 ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik |
| Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardwareovervågning |
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, Beskyttelse mod CPU overophedning, CPU kerne-spænding |
| Hardware egenskaber |
All-Solid Capacitor motherboard Design, Ultra Durable, Audio Noise Guard med Path Lighting, Dedicated Audio Hardware Zone |
| Med software |
Norton Internet Security, @BIOS, Xpress Install, GIGABYTE App Center |
| Bredde |
17 cm |
| Dybde |
17 cm |
The Gigabyte N3050N Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel Celeron N3050 dual-core processor. Designed for compact, small form factor PC systems and devices, the Gigabyte N3050N-D2P is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA and HDMI ports, while a PCI slot provides wide-range expansion card selections.
