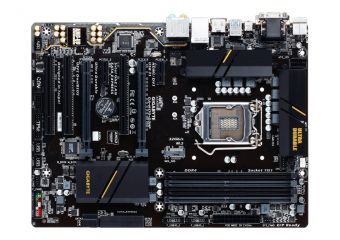

Produktbeskrivelse Gigabyte GA-H170-D3HP - 1.0 - bundkort - ATX - LGA1151 Socket - H170
Produkttype Bundkort - ATX
Chipsættype Intel H170
Processor-socket 1 x LGA1151 Socket
Kompatible processorer Pentium, Celeron, Core i5, Core i3, Core i7
Max RAM-størrelse 64 GB
RAM understøttet 4 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet
Lagringsporte 6 x SATA-600 (RAID), 2 x SATA Express-port, 1 x M.2
USB / FireWire porte 1 x USB-C + 1 x USB 3.1 + 3 x USB 3.0 + 2 x USB 2.0 + (4 x USB 3.0 + 4 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse 512 MB
Audio HD Audio (8-kanaler)
LAN Gigabit Ethernet

Produktdatablad
Produkttype Bundkort - ATX
Chipsættype Intel H170
Processor-socket LGA1151 Socket
Max antal processorer 1
Kompatible processorer Pentium, Celeron, Core i5, Core i3, Core i7
Maks. størrelse 64 GB
Teknologi DDR4
Bus Clock 2133 MHz
Understøttet RAM-integritetskon Ikke-ECC
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur
Maks. allokeret RAM-størrelse 512 MB
Type HD Audio (8-kanaler)
Audio codec Realtek ALC1150
Overensstemmelsesstandarder High Definition Audio
Netværks interfaces Gigabit Ethernet
Ekspansionsåbninger 1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 3 x PCI ¦ 1 x PCIe 3.0 x16 (x4-modus) ¦ 2 x PCIe 3.0 x1
Grænseflade (lagring) SATA-600 / PCIe 3.0 -stikforbindelser: 6 x 7-pin SATA, 1 x M.2, 2 x SATA Express-port - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interface 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 3 x USB 3.0 ¦ 1 x VGA ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (sidesurround) - mini-jack ¦ 1 x USB 3.1 ¦ 1 x PS/2-tastatur/mus ¦ 1 x USB-C ¦ 1 x DVI-D
Interne interfaces 4 x USB 2.0 - intern stik ¦ 4 x USB 3.0 - intern stik ¦ 1 x audio - intern stik ¦ 1 x SPDIF ud - intern stik ¦ 1 x seriel - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
BIOS-type (Basic Input/Output System) AMI
BIOS-egenskaber WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS
Hardwareovervågning CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, Beskyttelse mod CPU overophedning
Hardware egenskaber Q-Flash, AutoGreen, Ultra Durable, AMD CrossFireX-teknologisupport, Intel Small Business Advantage support, Easy RAID Installer, 4K Ultra HD-klar, GIGABYTE AMP-UP Audio, Audio Noise Guard med Path Lighting, GIGABYTE Smart Switch, GIGABYTE Ambient LED, LED Trace Path
Med software Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup
Overensstemmelsesstandarder Plug and Play, ACPI 5.0
Bredde 30.5 cm
Dybde 22.5 cm

GIGABYTE 100 series motherboards support the 6th generation Intel Core processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
The Intel USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering 16 Gb/s of total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the reversible USB Type-C and the traditional USB Standard-A connector for better compatibility over a wider range of devices.
The USB Type-C port with USB 3.1 support is a robust and slim connector for all of your devices with reversible plug orientation.
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
